41.7" Face

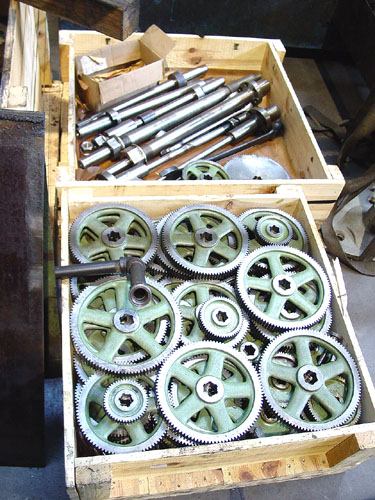

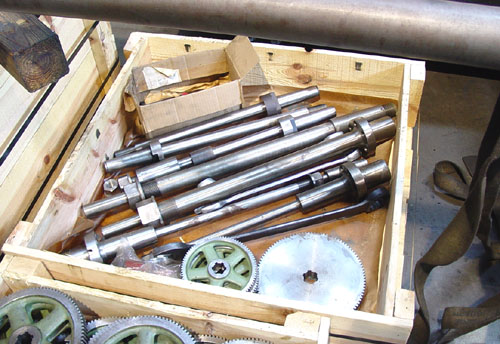

Plate, Automatic Cycles, Load Meter, Spindle Meter, Work Supports, Large
Quantity of Hob Arbors, Large Quantity of Change Gears, Magnetic Chip Conveyor
w/ Coolant System.
CATALOGUE SPECIFICATIONS:
Maximum Diameter of Gear w/o Support................. 70.8"
Maximum Diameter of Gear w/ Support.................. 41.7"
Maximum Pitch of Gear................................ M16
Travel Distance of Hob Saddle........................ 19.6"
Maximum Distance Between Arbor Centers............... 43.3"
Minimum Distance Between Arbor Centers............... 4.3"
Hob Spindle Speed.................................... 20 - 80 RPM
Maximum Diameter of Hob Used......................... 9"
Maximum Length of Hob Used........................... 11"
Shifting Distance of Hob Head........................ 3.9"
Table Diameter....................................... 41.7"
Table Hole Diameter.................................. 7.8"
Main Motor........................................... 15 HP
Electrics............................................ 440/3/60
Approximate Machine Dimensions....................... 155" x 80"
Approximate Machine Height........................... 120"
Approximate Machine Weight........................... 38,000 LBS
CONDITION: Machine Appears to be in Excellent Condition!
