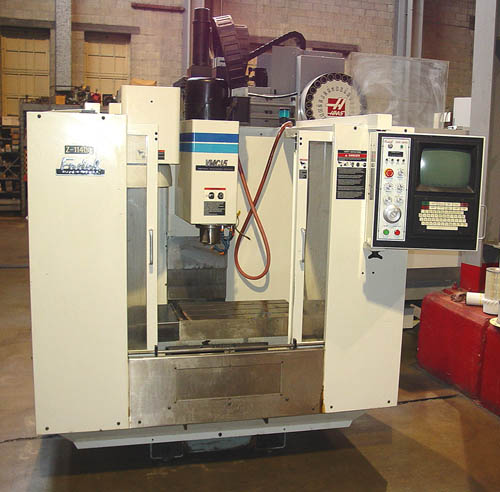

Fadal

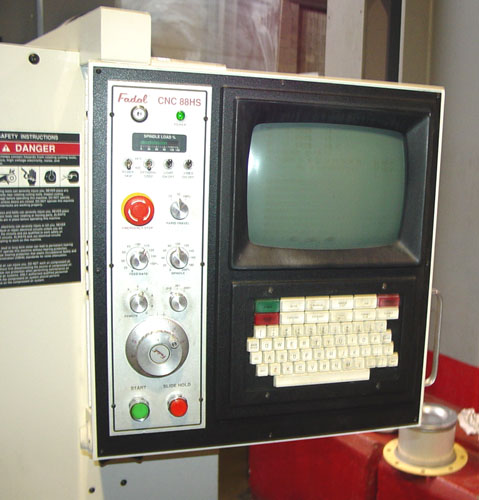

88HS CNC Control, RS-232 Port, Multiple Part Program Storage, Self
Diagnostics, 21 Station Automatic Tool Changer, Axis Error Compensation,
Full Enclosure, Coolant System and Chip Pan.
CATALOGUE SPECIFICATIONS:

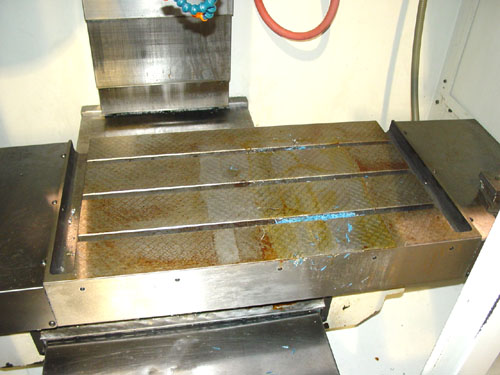

Table Working Surface.................................
29.5" x 16"
Table Load Capacity................................... 2,000
LBS
Longitudinal Travel (X-Axis)..........................
20"
Cross Travel (Y-Axis).................................
16"
Vertical Travel (Z-Axis)..............................
24"
Spindle Nose to Table.................................
4" - 24"
Rapid Traverse Rate (X & Y-Axes)......................
400 IPM
Rapid Traverse Rate (Z-Axis).......................... 400
IPM
Tool Storage Capacity................................. 21

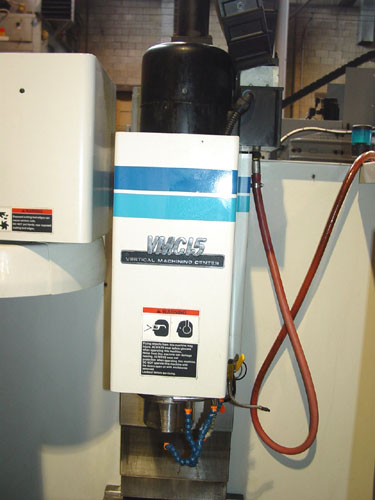

Spindle Horsepower.................................... 10 HP
Spindle Speeds Range.................................. 10-
7,500 RPM
Spindle Taper......................................... #40
Cat
Electrics.............................................
440/230/3/60
Approximate Machine Dimensions........................
87" x 106"
Approximate Machine Height............................
95"
Approximate Machine Weight............................ 8,000
LBS
CONDITION: Machine has Cut Primarily Plastic and Appears to
be in Excellent Condition !
