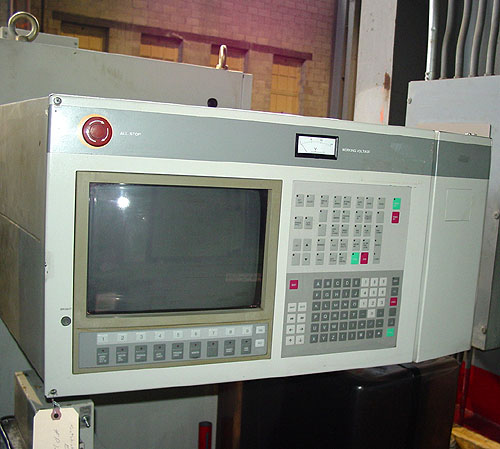

Mitsubishi CNC Control w/ CRT, Floppy Disc
Drive.
CATALOGUE SPECIFICATIONS:
Table Working Surface................................. 19.2" x
20.8"
Maximum Workpiece.....................................
17.7"x13.7"x6.6"
Maximum Work Weight................................... 264 Lbs
Machine Range.........................................
9.84"x11.81"
Rapid Rate............................................ 33.5 IPM
Wire Diameter......................................... .004" to
.012"
Max Wire Feed Speed................................... 9.84 IPM
Approximate Machine Dimensions........................ 108" x
96"
Approximate Machine Height............................ 90"
Approximate Machine Weight ........................... 4,600 LBS
CONDITION: Machine Appears to be in Excellent Condition !
