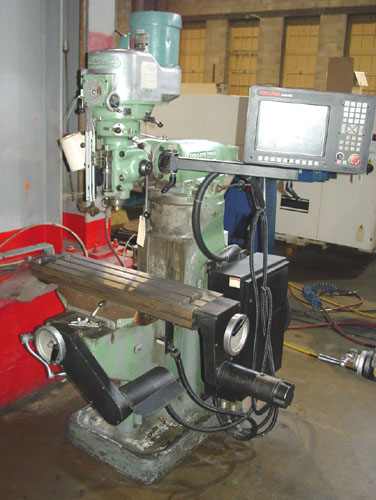

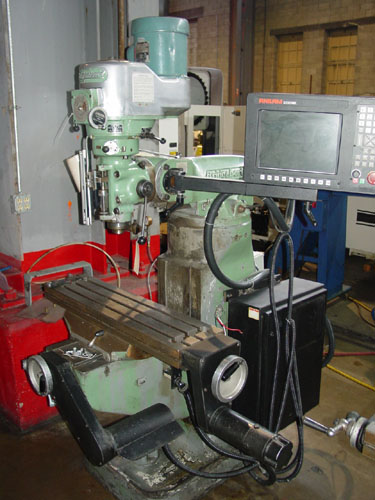

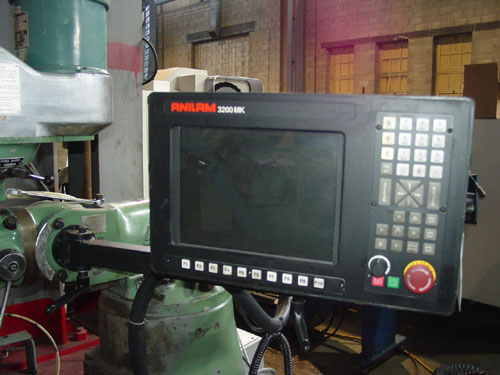

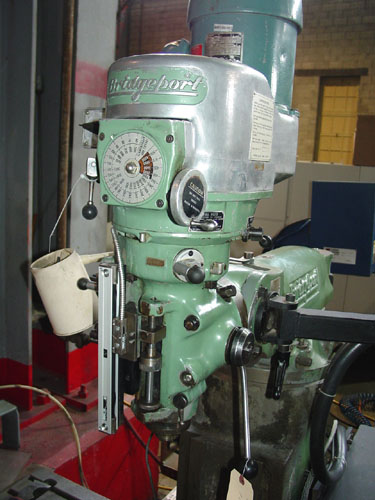

EQUIPPED WITH: Anilam 3200 MK 2-Axis CNC w/ Readout for Z-Axis (Quill), 1-1/2 HP Head, Knee Lock, Swivel Type Overarm, One Shot Lube System.

SPECIFICATIONS:

Table Dimensions (Overall, W x L)......................... 9" x 36"

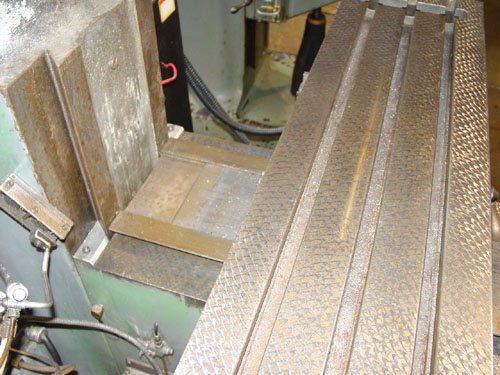

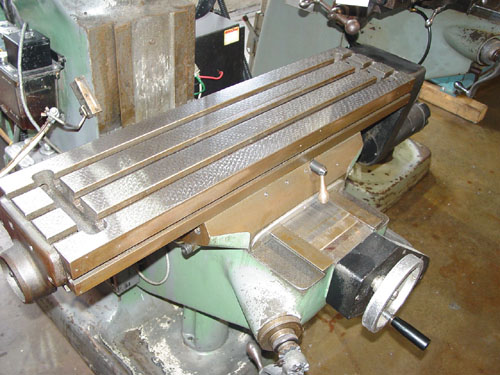

Table Working Surface, W X L.............................. 9" x 36"

Longitudinal Table Travel (X-Axis)........................ 30"

Cross Saddle Travel (Y-Axis).............................. 12"

Vertical Knee Travel (W-Axis)............................. 16"

Vertical Head Travel (Z-Axis)............................. 5"

Spindle Taper............................................. R-8

Spindle Speeds............................................ 80-4200 RPM

Table Feeds............................................... .75 - 35 IPM

Motor (Spindle)........................................... 1-1/2 HP

Electrics................................................. 230/460/3/60

Approximate Machine Dimensions............................ 60" x 66"

Approximate Machine Height................................ 78"

Approximate Machine Weight................................ 2200 lbs.
