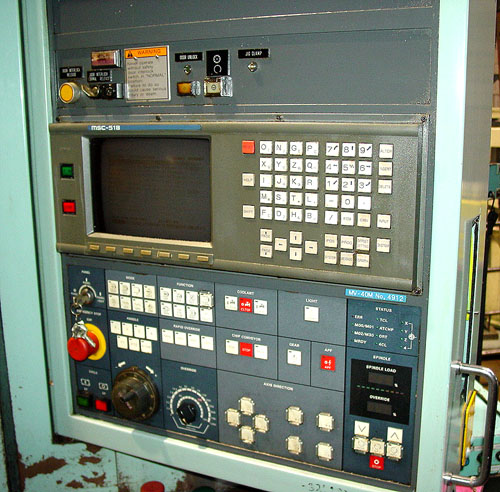

EQUIPPED WITH: Mori Seiki MSC-518 CNC Control (Fanuc 18M), Multiple Part Program Storage, Canned Cycles, 20 Station Automatic Tool Changer, Full Coolant Enclosure, Chip Conveyor, and Coolant System.

CATALOGUE SPECIFICATIONS:

X Travel (Longitudinal)............................... 22"

Y Travel (Cross)...................................... 16"

Z Travel (Vertical)................................... 18"

Table Working Surface................................. 35" x 17.7"

Table Work Load Capacity.............................. 660 LBS

Spindle Horsepower.................................... 10 HP

Spindle Speeds........................................ 30-8000 RPM

Spindle Taper......................................... #40 Cat

Feed Rates,........................................... 0.1 to 400 IPM

Rapid Traverse ....................................... 400 IPM

Tool Storage Capacity................................. 20

Approximate Dimensions................................ 110" x 87"

Approximate Height.................................... 106"

Approximate Weight.................................... 12,000 LBS
