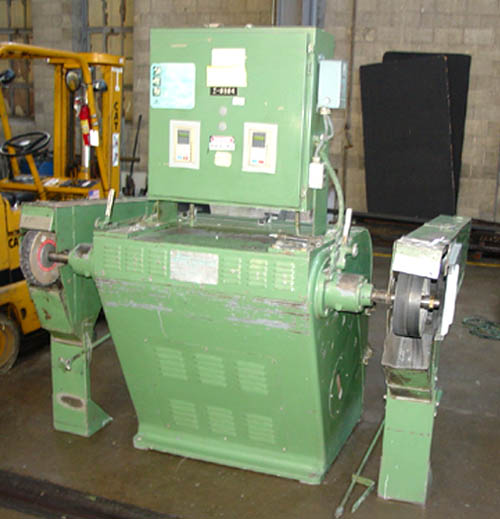

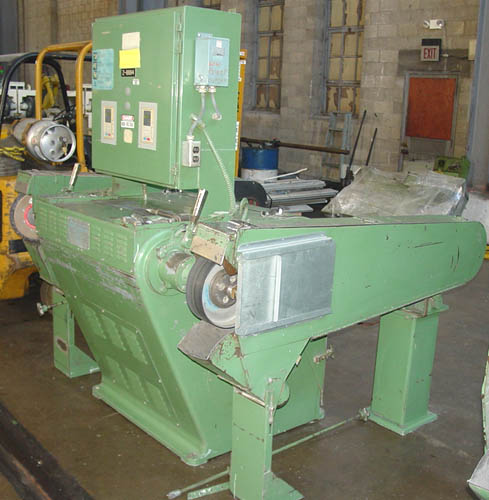

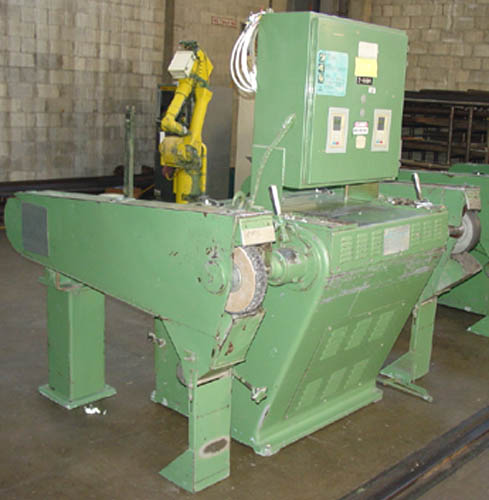

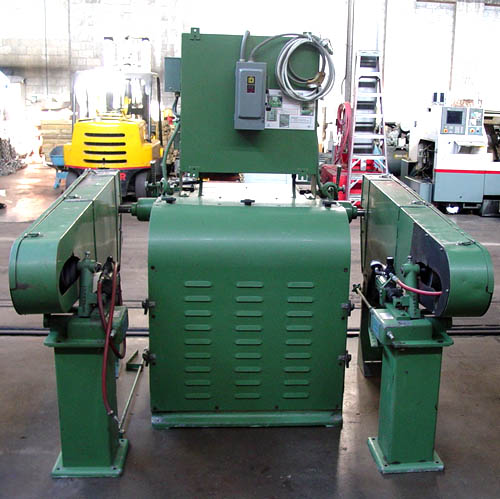

EQUIPPED WITH: Dual 5 HP Spindle Motors, Variable Speed, Abrasive Belt Guards, Model 6A Backstands Floor Mounted, Cast Iron Base.

CATALOGUE SPECIFICATIONS:

Spindle Horsepower (2)................................... 5 HP each

Spindle Speed (Variable)................................. 750 - 3000RPM

Arbor Diameter........................................... 1-1/4"

Width Between Flanges.................................... 8"

Distance Between Wheels.................................. 64"

Base Clearance........................................... 12"

Electrics................................................ 460/3/60

Approximate Machine Dimensions........................... 78" x 76"

Approximate Machine Height............................... 82"

Approximate Machine Weight............................... 3,000 Lbs.
