OKK HM-4 CNC HORIZONTAL MACHINING CENTER

Stock Number P12056

OKK HM-4 FOR SALE CNC MILL USED CNC MILL CNC HORIZONTAL MACHINING CENTER

ACTUAL PHOTOS

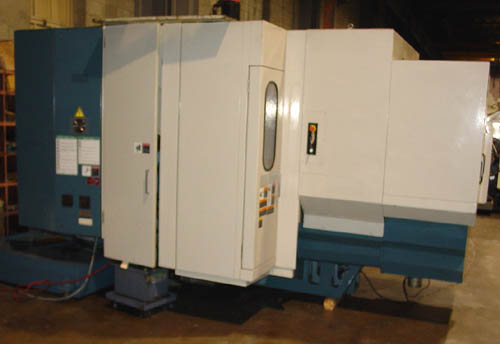

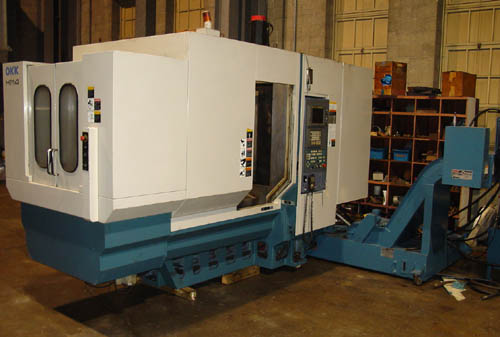

OKK HM-4 CNC HORIZONTAL MACHINING CENTER

Model HM-4, S/N 109, New 1998

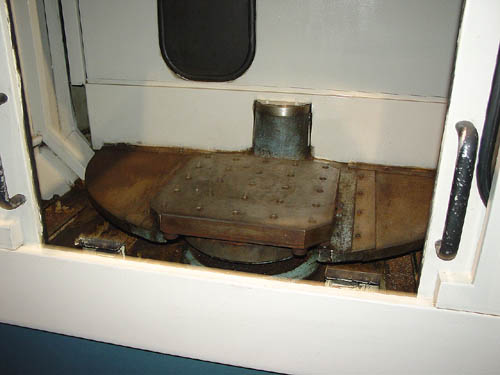

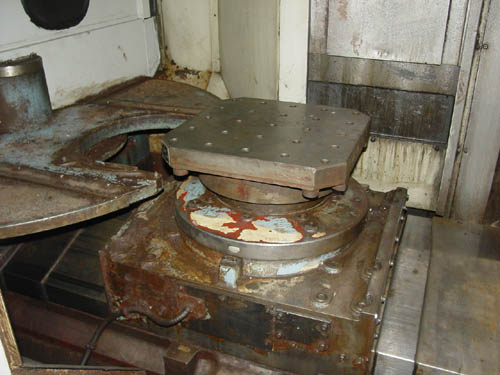

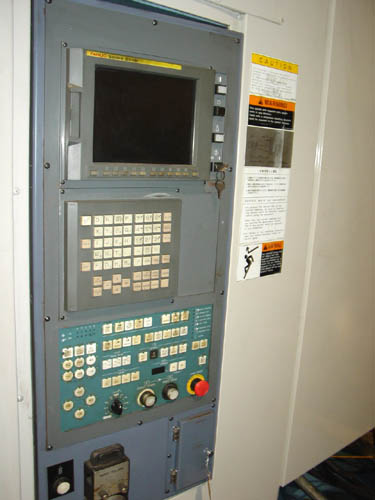

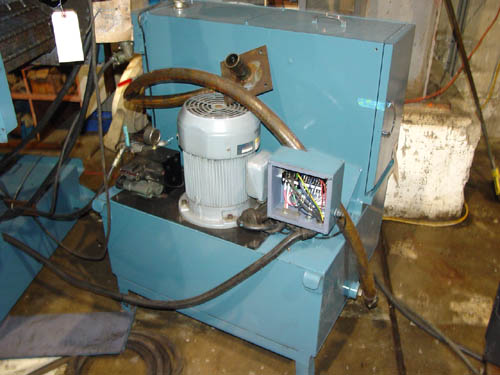

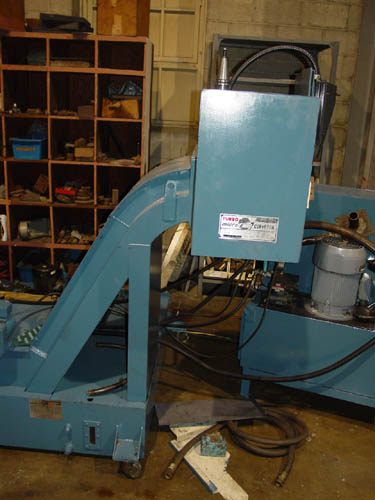

EQUIPPED WITH: Fanuc 21IM CNC Control w/ 14" Color CRT, Two 15.7" FullyContouring 4th Axis (360,000 Positions) Pallets, 40 Position Automatic Tool Changer, Thru the Spindle Coolant, RS-232 Port, Chip Conveyor, Full Coolant Enclosure, Coolant System.

CATALOGUE SPECIFICATIONS:

Longitudinal Travel (X-Axis) ........................... 22"

Vertical Travel (Y-Axis) ............................... 20"

Spindle Travel (Z-Axis) ................................ 22"

Pallet Dimensions ...................................... 15.7"x 15.7"

Maximum Pallet Load .................................... 3000 LBS

Number of Pallets ...................................... 2

Number of Index Positions............................... 360,000

Feed Rate, All Axes .................................... .04-1575 IPM

Rapid Traverse, All Axes ............................... 1575 IPM

Spindle Horsepower...................................... 30 HP

Spindle Speed Range..................................... 30-10,000 RPM

Spindle Taper .......................................... #40 CAT

Number of Tool Stations ................................ 40

Electrics............................................... 220/3/60

Approximate Floorspace Dimensions ...................... 140" x 97"

Approximate Machine Height ............................. 113"

Approximate Machine Weight ............................. 18,000 LBS

CONDITION: Machine Appears to be in Excellent Condition!
