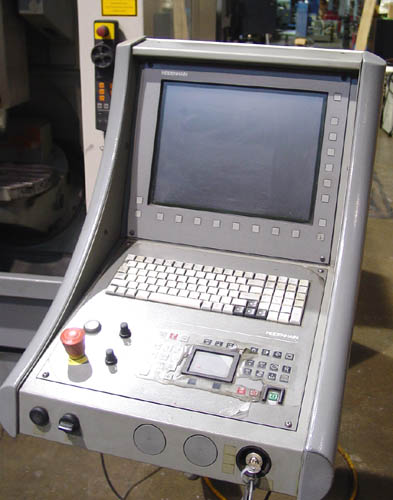

EQUIPPED WITH: Heidenhain Millplus CNC w/ CRT, Thru the Spindle Coolant,

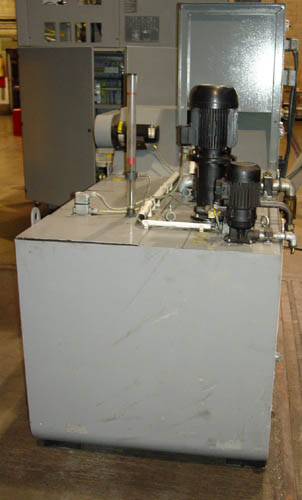

Coolant System.

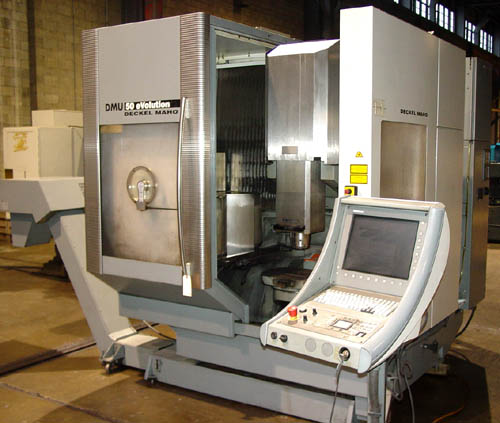

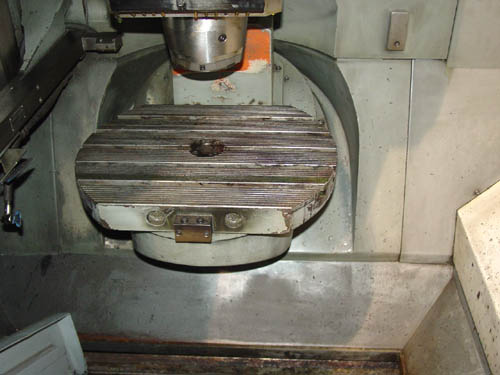

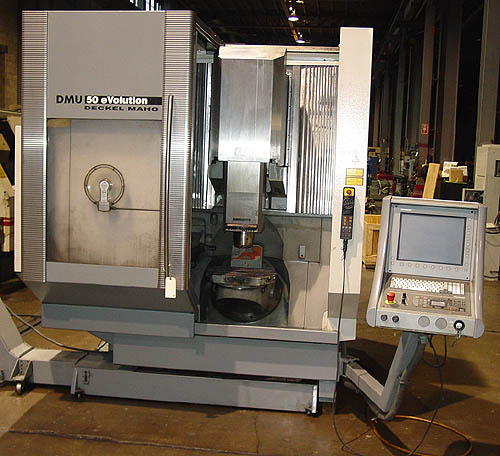

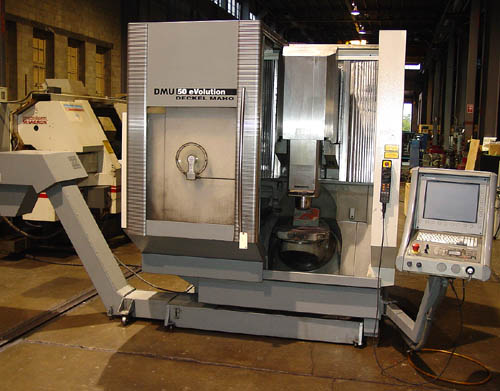

DESCRIPTION: The Table on the DMG DMU 50 Swivels 0 - 180 Degrees and
Rotates 360 Degrees Which Allows for High Speed 5-Sided, 5-Axis Simultaneous
Machining with One Work Piece Clamping.
CATALOGUE SPECIFICATIONS:
X Travel (Longitudinal)............................... 19.7"
Y Travel (Cross)...................................... 16.5"
Z Travel (Vertical)................................... 15"
Table Working Surface................................. 19.7" x
15"
Swivel Range B-Axis................................... 0 - 180 Degrees
Swivel Range (Rotary) C-Axis.......................... 0 - 360 Degrees
Rapid Traverse (B-Axis)............................... 26 RPM
Rapid Traverse (C-Axis)............................... 33 RPM
Table Work Load Capacity.............................. 441 LBS
Spindle Horsepower.................................... 46 HP
Spindle Speeds........................................ 20-18,000 RPM
Spindle Taper......................................... CAT 40
Rapid Traverse X, Y, & Z Axes......................... 1968 IPM
Tool Storage Capacity................................. 32
Approximate Dimensions................................ 140" x
88"
Approximate Height.................................... 97"
Approximate Weight.................................... 12,566 LBS
CONDITION: This Machine Appears to be in Excellent Condition !
