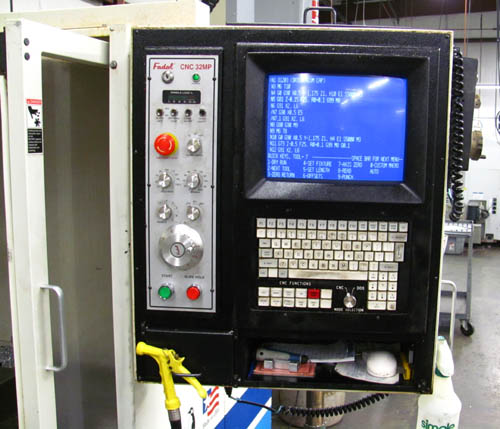

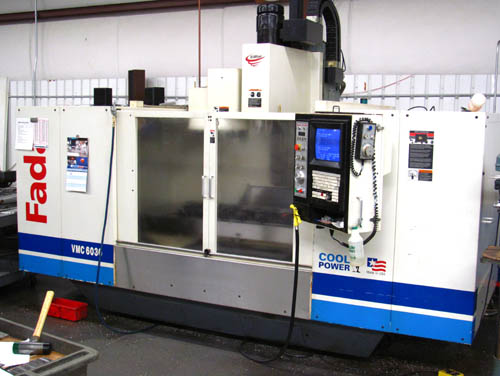

EQUIPPED WITH:Fadal MP-32 CNC Control, Part Program Storage, Self
Diagnostics, Heavy Duty Box Ways, Graphics, Rigid Tap, 21 Station Automatic
Tool Changer,Axis Error Compensation, Cutter Compensation, Full Enclosure,
Coolant System.
CATALOGUE SPECIFICATIONS:
Table Working Surface................................. 62.5" x
30"
Table Load Capacity................................... 3,500 LBS
Longitudinal Travel (X-Axis).......................... 60"
Cross Travel (Y-Axis)................................. 30"
Vertical Travel (Z-Axis).............................. 28"
Feed Rates (X & Y-Axes)............................... 0.1 to 250 IPM
Feed Rate (Z-Axis).................................... 0.1 to 250 IPM
Rapid Traverse Rate (X & Y-Axes)...................... 400 IPM
Rapid Traverse Rate (Z-Axis).......................... 400 IPM
Tool Storage Capacity................................. 21
Spindle Horsepower.................................... 22.5 HP
Spindle Speeds Range.................................. 40-10,000 RPM
Spindle Taper......................................... #40 Taper CAT
Approximate Machine Dimensions........................ 103" x
158"
Approximate Machine Height............................ 119"
Approximate Machine Weight............................ 17,500 LBS
CONDITION: Machine Cut Primarily Aluminum and Appears to be in
