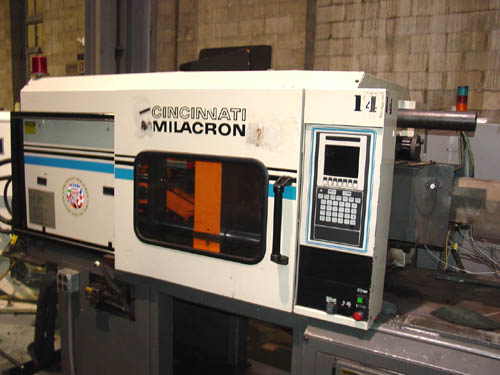

Cincinnati

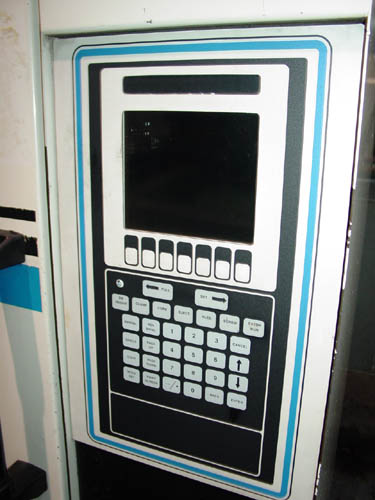

Milacron CAMAC (Complete Automatic Manufacturing Activity Control) VEL CNC
Control w/CRT, Core-Pull, Hydraulic Knockouts.
CATALOGUE SPECIFICATIONS:
Tonnage Capacity................................... 110 Ton
Injection Unit Capacity............................ 8 Oz
Platen Size........................................ 24.8" x
22.8"
Distance Between Tie Bars.......................... 16.1" x
14.2"
Clamp Stroke....................................... 11.8"
Maximum Daylight................................... 27.6"
Minimum Mold Thickness............................. 5.9"
Maximum Mold Thickness............................. 15.7"
Eject Force........................................ 4 Tons
Eject Stroke....................................... 2.8"
Motor.............................................. 20 HP
Electrics.......................................... 460/3/60
Approximate Machine Dimensions..................... 70" x 238"
Approximate Machine Height......................... 81"
Approximate Machine Weight......................... 13,000 LBS
CONDITION: Machine Appears to be in Excellent Condition !
