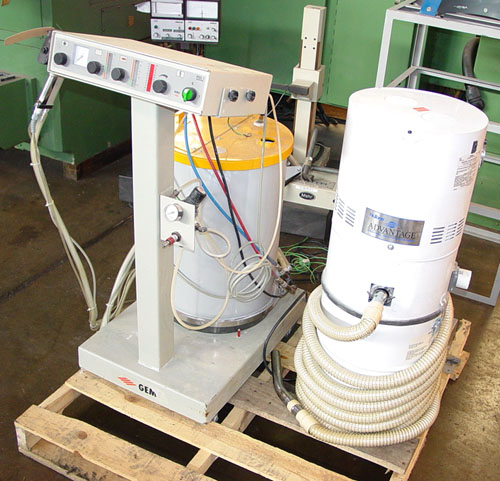

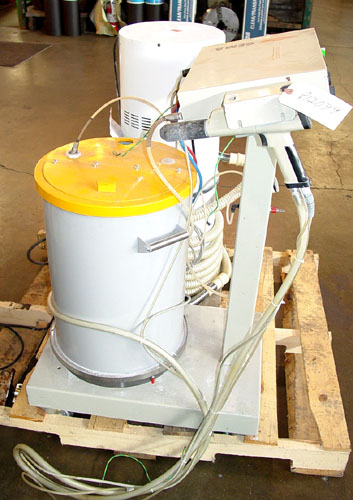

Gema PGC-1 Powder Coating System

Stock # P12079

ACTUAL PHOTOS

EQUIPPED WITH:

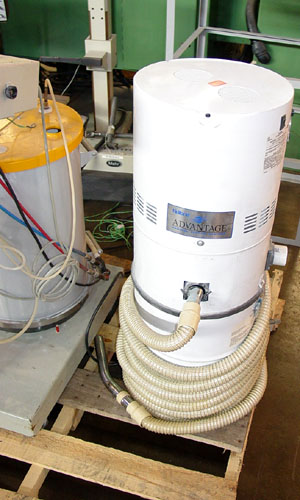

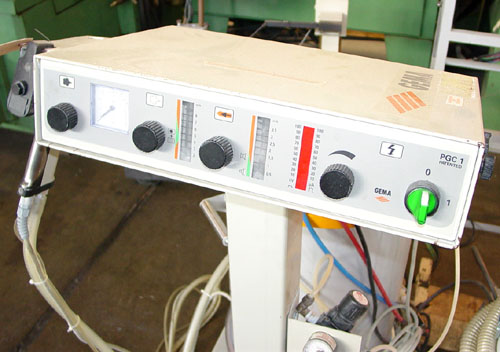

Gema PGC1 Control, Paint Gun, Hopper, Nutone Advantage Vacuum System,
Voltage Choices of 100V, 110V, 120V, 200V, 230V or 240V.

CATALOG SPECIFICATIONS:

Maximum Input Pressure................................................. 10 Bar
Minimum Input Pressure.................................................. 5 Bar
Maximum Water Vapor Content of Compressed Air........ 1.3g/M3
Maximum Oil Vapor Content of Compressed Air............ .1 mg/kg
Frequency........................................................................ 50/60 Hz
Connected Load.............................................................. 50 VA
Rated Output Voltage to Gun.......................................... 10 V
Rated Output Current to Gun.......................................... 1.2 VA
Approximate Machine Dimensions.................................. 48" x 36"
Approximate Machine Height.......................................... 43"
Approximate Machine Weight......................................... 100 LBS

CONDITION: Machine Appears to be in Excellent Condition!
