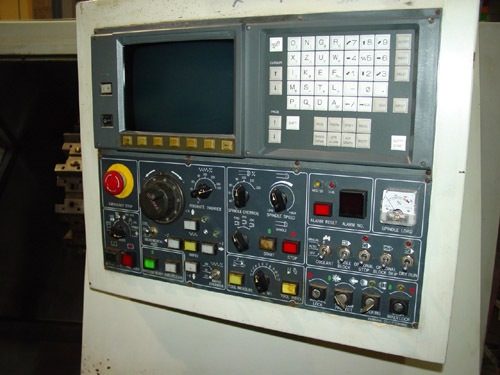

EQUIPPED WITH: Fanuc OT CNC Control, Constant Surface
Speed Control, Self Diagnostic Functions, Inch/Metric Programming,
Background Editing, Circular Interpolation, Tool Nose Radius
Compensation, Canned Cycles, Tool Presetter, 8" 3-Jaw Power Chuck,

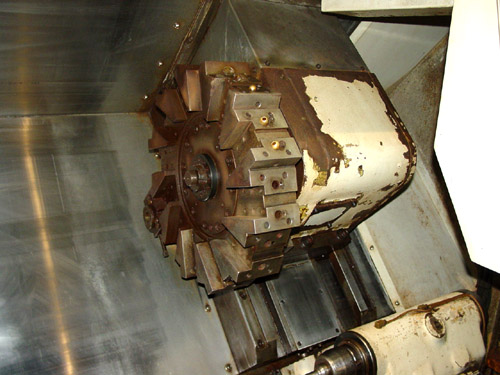

Hardened and Ground Box Way Construction, Programmable Tailstock, 12

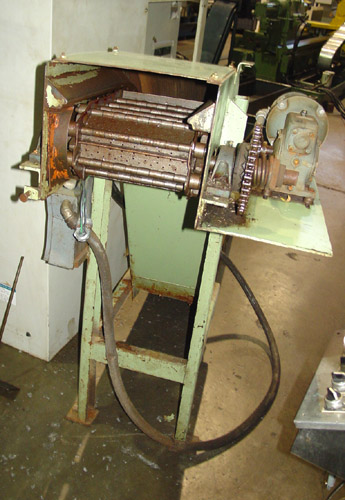

Position Bi-Directional ID/OD Tool Turret, Chip Conveyor, and Coolant
System.
CATALOGUE SPECIFICATIONS:
Swing over Slant Bed ..................................
19.7"
Swing over Carriage ...................................
13"
Max Tailstock Position.................................
26"
Max Machinable Center Distance.........................
20.9"
Standard Chuck Size....................................
8"
Cross Travel (X-Axis)..................................
8.3"
Longitudinal Travel (Z-Axis)...........................
21.7"
Rapid Traverse Rate (X-Axis)...........................
480 IPM
Rapid Traverse Rate (Z-Axis)...........................
630 IPM
Number of Turrets......................................
1
Number of Tool Positions...............................
12
Spindle Bore...........................................
2.44"
Bar Capacity...........................................
2"
Spindle Speed Range....................................
40-4000 RPM
Spindle Drive Motor ...................................
25 HP
Electrics .............................................
220/3/60
Approximate Machine Dimensions.........................
112" x 76"
Approximate Machine Height.............................
71"
Approximate Weight.....................................
10,500 LBS
CONDITION: Machine Appears to in Excellent Condition!
+
