CATALOGUE SPECIFICATIONS:

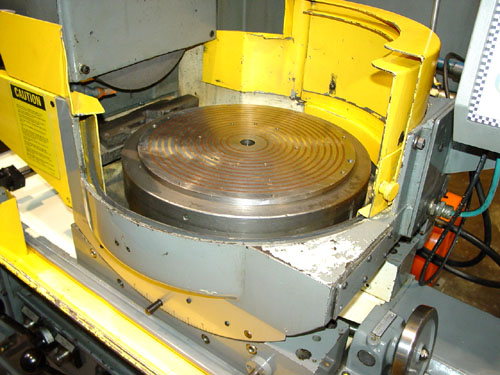

Magnetic Chuck, Holding Diameter................... 16"

Swing Inside Coolant Guards........................ 18-1/2"

Vertical Capacity Under New Wheel.................. 10-1/2"

Vertical Capacity Under Worn Wheel................. 13"

Max Grinding Stroke................................ 8"

Table Travel Max (Not Grinding).................... 12"

Table Travel Max (17 Deg Chuck Swivel)............. 9-5/8"

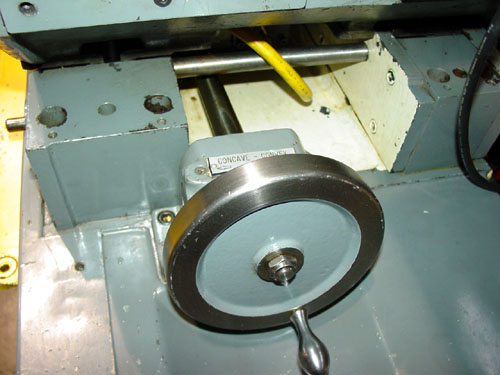

Maximum Convex Table Angle......................... 17 Degrees

Maximum Concave Table Angle........................ 10 Degrees

Standard Wheel Size................................ 14" x 1" x 5"

Grinding Wheel Speed............................... 1640 RPM

Chuck Speeds, Range................................ 50 to 225 RPM

Table Speeds for Grinding.......................... 0 to 12 FPM

Power Feed Adjustment.............................. .0001" to .0005"

Main Drive Motor................................... 15 HP

Electrical System (Wired 440)...................... 440/3/60

Approximate Machine Dimensions..................... 70-5/8" x 64"

Approximate Machine Height......................... 80-1/2"

Approximate Machine Weight......................... 8,500 LBS
