CNC Enhancements Hydroturn Barfeeder

Stock Number P12115

CNC Enhancements Hydroturn Barfeeder For Sale

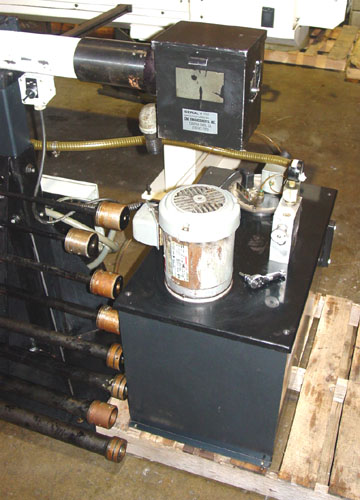

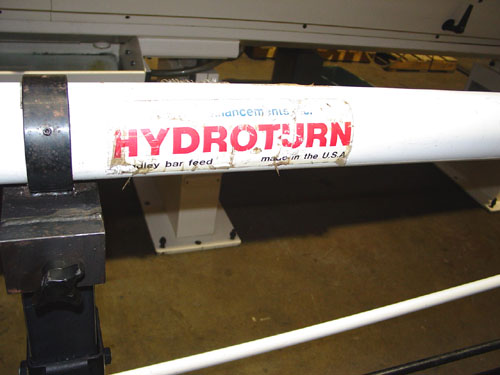

ACTUAL PHOTOS

12' CNC ENHANCEMENTS BAR FEEDER

Model Hydroturn, S/N 0947

MACHINE DESCRIPTION: This Barfeeder Consists of Eight Different Bar Stock Size Guide Tubes Arranged on a Common Pitch Circle. Each Guide Tube Contains Its Own Piston/Pusher Assembly and is Indexed to the Tube Containing the Bar Size Needed by a Simple Ring and Pin Mechanism. The Selected Tube will Always be on the Centerline of the Turning Machine Spindle Centerline.

ADVANTAGES OF USE: One Operator Can Change Bar Stock Ranges by Rotating the Tube Assembly on its Axis. This Machine is Excellent for Short Runs Requiring Frequent Bar Stock Size Changes.

CATALOGUE SPECIFICATIONS:

Round Bar Diameter Capacity ...................... 3/8" to 1-7/8" Range

Maximum Feed Length For Bars...................... 12'

Height Floor to Feed Guide (Adjustable) .......... 39"

Approximate Machine Dimensions.................... 214" x 20"

Approximate Machine Height........................ 55"

Approximate Machine Weight........................ 4,000 lbs

CONDITION: Machine Appears to be in Excellent Condition!
