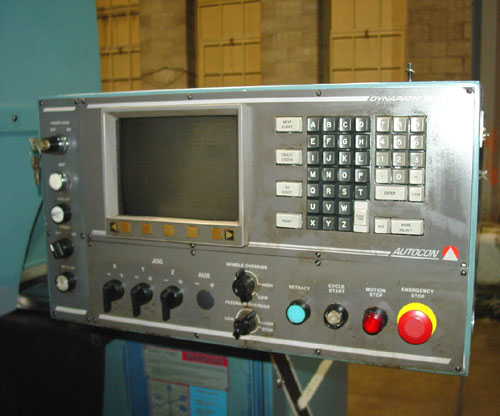

EQUIPPED WITH: Delta Dynapath 10 CNC Control w/ CRT, 3-Axis CNC Control,Power Drawbar, Way Covers, 40 Taper, Transformer.

CATALOGUE SPECIFICATIONS:

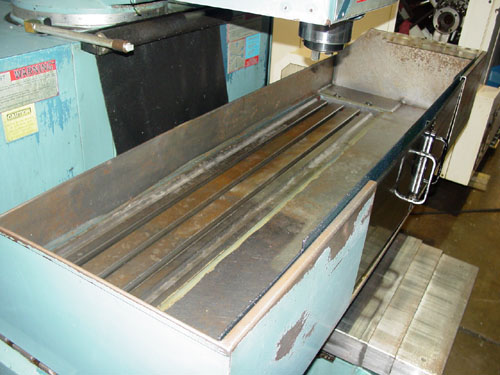

Table Working Surface................................ 11" x 58"

Table Load Capacity.................................. 1000 LBS

Longitudinal Travel (X-Axis)......................... 32"

Cross Travel (Y-Axis)................................ 14"

Vertical Travel (Z-Axis) Spindle..................... 6.5"

Vertical Travel (Z-Axis) Knee (Manual)............... 16"

Maximum Clearance Table Top to Spindle Nose.......... 18.25"

Spindle Taper........................................ 40

Feed Rates, All Axes................................. 0.1 to 250 IPM

Rapid Traverse Rate, All Axes........................ 350 IPM

Spindle Speeds Range................................. 55-4250 RPM

Approximate Machine Dimensions....................... 105" x 81"

Approximate Machine Height........................... 96"

Approximate Machine Weight........................... 5,400 Lbs.
