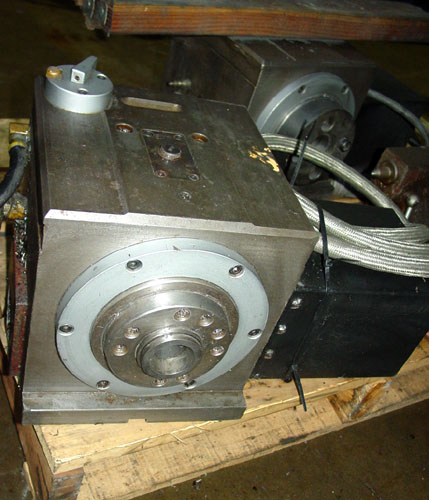

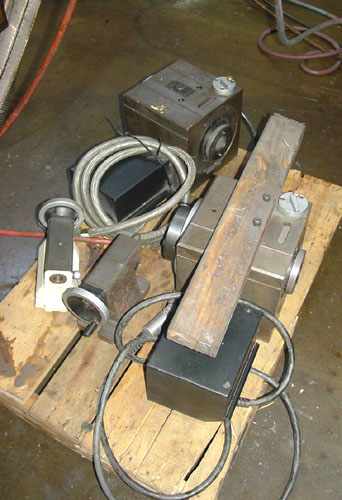

EQUIPPED WITH: Mori Seiki MSC-803 Conversational CNC w/ CRT, High Pressure Thru the Spindle Coolant, (2) SMW Indexers, Manual Pulse Generator, Background Edit, Canned Cycles, Inch Metric Conversion, Work Coordinate System Selection, Circular Interpolation, Tool Life Management, Tool Offsets, 29.5" x 48.4" (2) Position Rotating Pallet, Rigid Tapping, 25 Station Automatic Tool Changer, Full Coolant Enclosure, Turbo Chip Conveyor, Coolant System.

CATALOGUE SPECIFICATIONS:

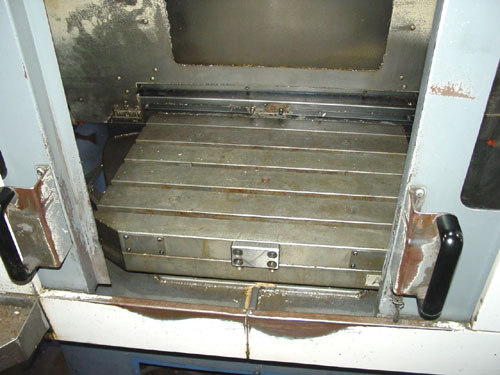

Rotating Pallet Size.................................. 48.4" x 29.5"

Workpiece Change Setup................................ 0/180 Deg.

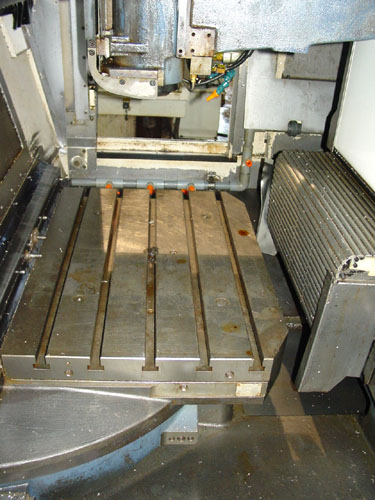

Working Surface....................................... 29.5" x 21.7"

Table Load Capacity on Rotating Pallet................ 880 LBS Total

Table Top to Spindle Nose Minimum..................... 6.9"

Table Top to Spindle Nose Maximum..................... 27"

Longitudinal Travel (X-Axis).......................... 20.1"

Cross Travel (Y-Axis)................................. 20.1"

Vertical Travel (Z-Axis).............................. 20.1"

Rapid Traverse Rate X & Y Axes........................ 1635 IPM

Rapid Traverse Rate Z-Axis............................ 1259 IPM

Tool Storage Capacity................................. 25

Spindle Horsepower.................................... 15 HP

Spindle Speed Range................................... 20 - 8000 RPM

Spindle Taper......................................... CAT 40

Approximate Machine Dimensions........................ 140" x 80"

Approximate Machine Height............................ 108"

Approximate Machine Weight............................ 10,000 LBS
