Chiron FZ-18W Vertical Machining Center

             Stock Number P12158

           ACTUAL PHOTOS

              Video Link

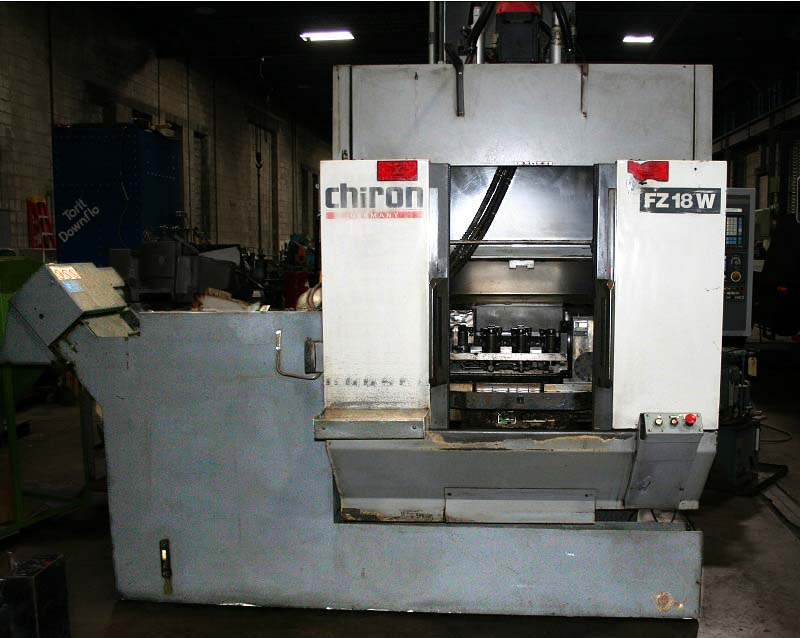

        CHIRON FZ-18W HIGH SPEED VERTICAL    MACHINING CENTER

         Model FZ-18W, S/N 480-74, New 1995

EQUIPPED WITH:

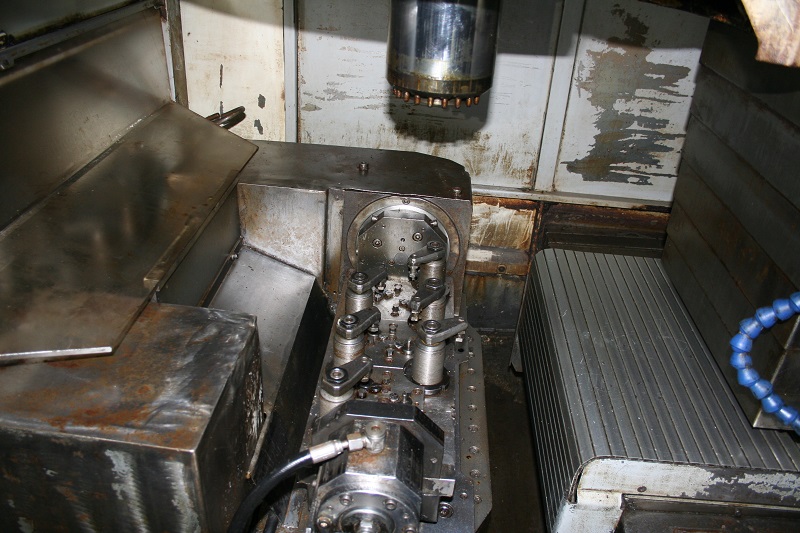

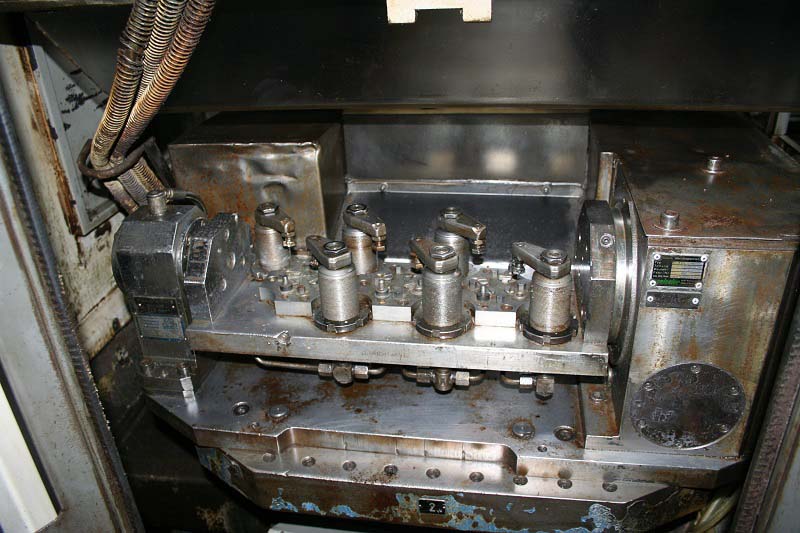

Fanuc 0M CNC w/ CRT, 24" x 16" 180 Degree Rotating Pallet, 12 Station Automatic Tool Changer, Full Coolant Enclosure, Chip Conveyor, Coolant System.

CATALOGUE SPECIFICATIONS:

Mounting Surface...................................... 24" x 16"

Workpiece Change Setup................................ 0/180 Deg.

Workpiece Change Time................................. 2.9 Sec. approx.

Table Load Capacity Per Side.......................... 330 LBS

Longitudinal Travel (X-Axis).......................... 22"

Cross Travel (Y-Axis)................................. 16"

Vertical Travel (Z-Axis).............................. 18"

Rapid Traverse Rate All Axes.......................... 1600 IPM

Tool Storage Capacity................................. 20

Spindle Horsepower.................................... 20 HP

Spindle Speed Range................................... 20 - 10,000 RPM

Spindle Taper......................................... #40

Approximate Machine Dimensions........................ 130" x 138"

Approximate Machine Height............................ 122"

Approximate Machine Weight............................ 6,600 LBS

CONDITION: Machine Appears to be in Excellent Condition !
