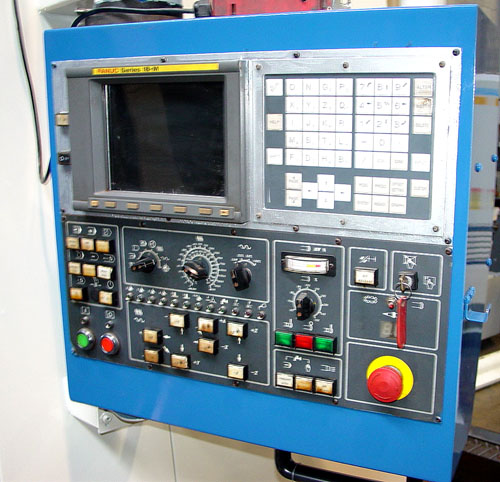

Fanuc 18M
CNC Control w/CRT, RS-232 Port, Inch or Metric Programming, Flood Coolant
System With Full Chip-Splash Enclosure.
CATALOGUE SPECIFICATIONS:
Table Working Surface............................. 20" x 48"
Table Load Capacity............................... 3,300 LBS
Longitudinal Travel (X-Axis)...................... 43"
Cross Travel (Y-Axis)............................. 20"
Vertical Travel (Z-Axis).......................... 25"
Maximum Clearance Table Top to Spindle Nose....... 31"
Feed Rates, All Axes.............................. 0 to 315 IPM
Rapid Traverse Rate, All Axes..................... 787 IPM
Tool Storage Capacity............................. 30
Spindle Horsepower................................ 15 HP
Spindle Speeds Range.............................. 0-8000 RPM
Spindle Taper..................................... No. 40 CAT (V-Flange)
Electrics......................................... 220/3/60
Approximate Machine Dimensions.................... 130" x 118"
Approximate Machine Height........................ 122"
Approximate Machine Weight........................ 14,000 LBS
CONDITION: Appears to be in Very Good Condition !
