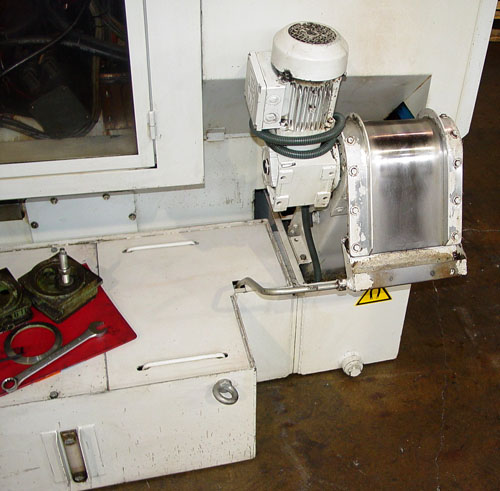

EQUIPPED WITH: Siemens Sinumerik 840C CNC Control, Magnetic Chip Conveyor w/ Coolant System.

CATALOGUE SPECIFICATIONS:

Maximum Hob Tip Diameter............................. 2.56"

Minimum Hob Arbor Diameter........................... .31"

Maximum Geared Length................................ 4.25"

Maximum Length....................................... 4.72"

Radial Travel (X-Axis)............................... 3.15"

Tangential Travel (Y-Axis)........................... 3.93"

Axial (Z-Axis)....................................... 8.66"

Tailstock (Z4 Axis).................................. 12.6"

X-Axis Rapid Traverse Rate........................... 295 IPM

Y-Axis Rapid Traverse Rate........................... 196 IPM

Z-Axis Rapid Traverse Rate........................... 393 IPM

X-Axis Feed Rates.................................... .04 - 295 IPM

Z-Axis Feed Rates.................................... .04 - 393 IPM

Maximum Hob Head Swivel Angle Direction +A........... 45 Degrees

Maximum Hob Head Swivel Angle Direction -A........... 115 Degrees

Work Spindle External Diameter....................... 4.13"

Work Spindle Bore.................................... 1.57"

Tool Speeds.......................................... 300 - 5000 RPM

Work Spindle Speeds.................................. 0 - 3000 RPM

Electrics............................................ 480/3/60

Approximate Machine Dimensions....................... 128" x 127"

Approximate Machine Height........................... 80"

Approximate Machine Weight........................... 9,000 LBS
