HAAS CNC

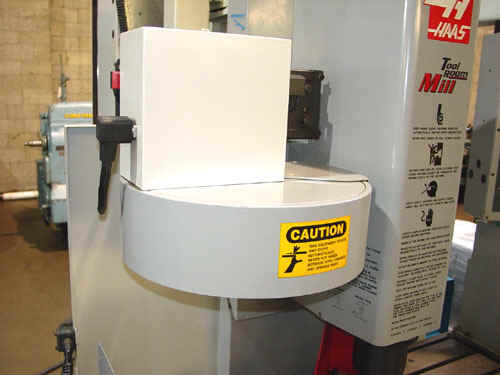

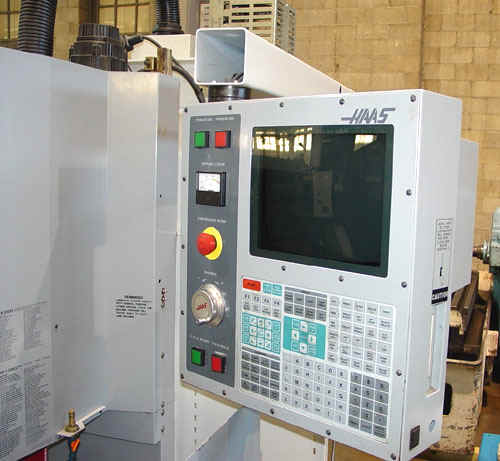

Control w/CRT, RS-232 Port, Floppy Disc Drive, 10 Station Automatic Tool

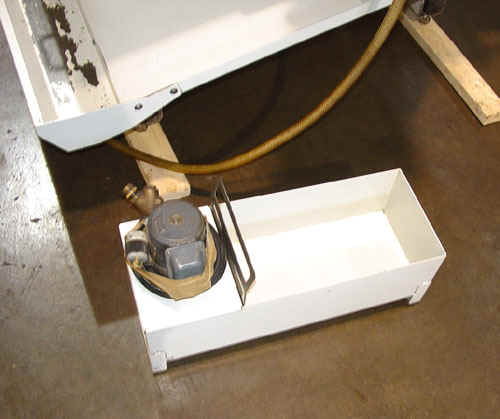

Changer, Coolant Tank and Pump.
NOTE: This Machine has (3) Modes of Operation: Full CNC, Full Manual
with Digital Readout, and Combined Manual/CNC. This Machine can also run
on Either 3 Phase Power or Single Phase Power.
CATALOGUE SPECIFICATIONS:
Table Working Surface............................. 10.75" x
47.75"
Longitudinal Travel (X-Axis)...................... 30"
Cross Travel (Y-Axis)............................. 12"
Vertical Travel (Z-Axis).......................... 16"
Maximum Clearance Table Top to Spindle Nose....... 20"
Minimum Clearance Table Top to Spindle Nose....... 4"
Feed Rates, All Axes.............................. 0 to 200 IPM
Rapid Traverse Rate, All Axes..................... 200 IPM
Tool Storage Capacity............................. 10
Spindle Horsepower................................ 7.5 HP
Spindle Speeds Range.............................. 0-4000 RPM
Spindle Taper..................................... No. 40
Electrics......................................... 208/3/60
or .............................................. 240/1/60
Approximate Machine Dimensions.................... 85" x 64"
Approximate Machine Height........................ 102"
Approximate Machine Weight........................ 3,300 LBS
CONDITION: This Machine Appears to be in Excellent Condition !
