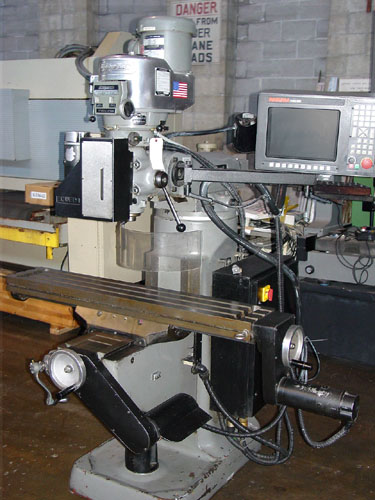

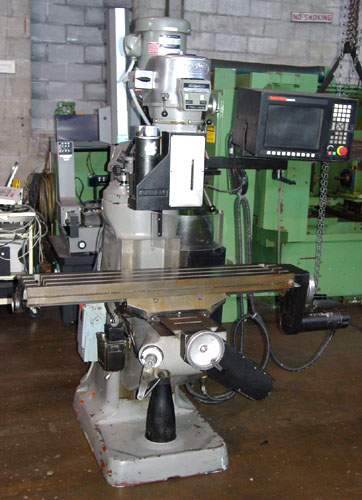

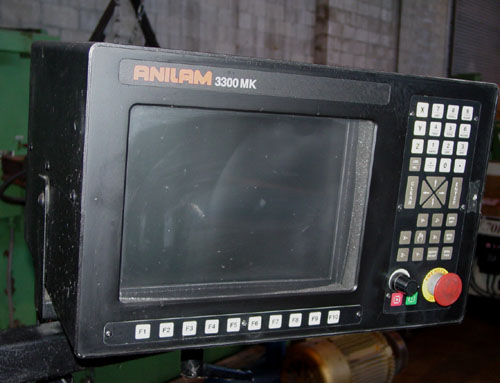

EQUIPPED WITH: Anilam 3300 MK CNC Control, Manual or CNC Operation, 2 HP Head, 3-Axis CNC Control

SPECIFICATIONS:

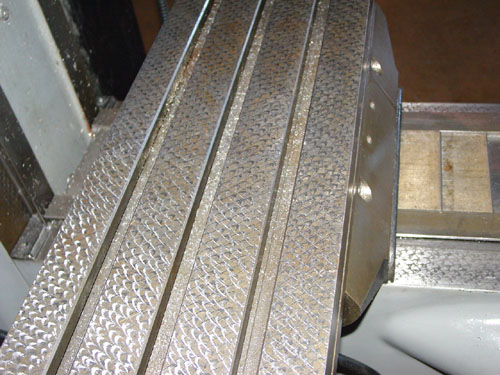

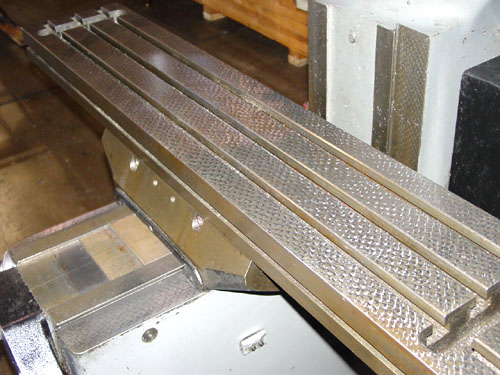

Table Dimensions (Overall, W x L)......................... 9" x 48"

Table Working Surface, W X L.............................. 9" x 48"

Maximum Table Uniform Load................................ 300 Lbs.

Longitudinal Table Travel (X-Axis)........................ 30"

Cross Saddle Travel (Y-Axis).............................. 12"

Vertical Knee Travel (W-Axis)............................. 16"

Vertical Head Travel (Z-Axis)............................. 4.5"

Spindle Speeds............................................ 60-4200 RPM

Table Feeds............................................... .1 - 100 IPM

Motor (Spindle)........................................... 2 HP

Approximate Machine Dimensions............................ 100" x 89"

Approximate Machine Height................................ 81"

Approximate Machine Weight................................ 2340 lbs.
