EQUIPPED WITH: Automatic Broach Handling for Semi-Automatic or

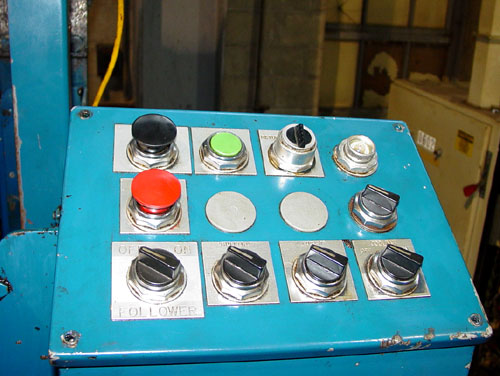

Fully Automatic Cycling, Two Button Anti-Tie Down Control, Coolant System.
SPECIFICATIONS:
Broaching Force, Maximum ............................... 15 Ton
Ram Stroke, Maximum ....................................
48"
Approximate Cycle Time.................................. 15 Seconds

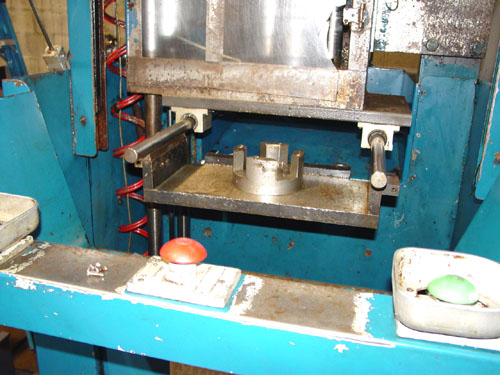

Shuttle Table Work Platen Dimensions ................... 7" x
17"

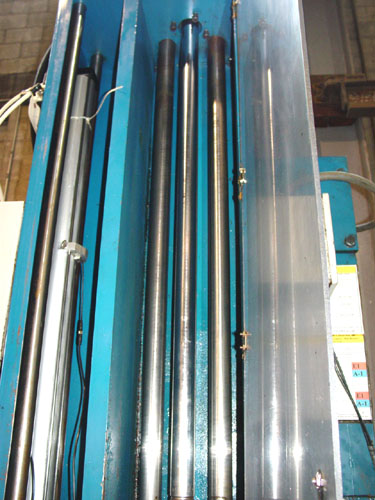

Round Type Guide Ways Diameter.......................... 2"

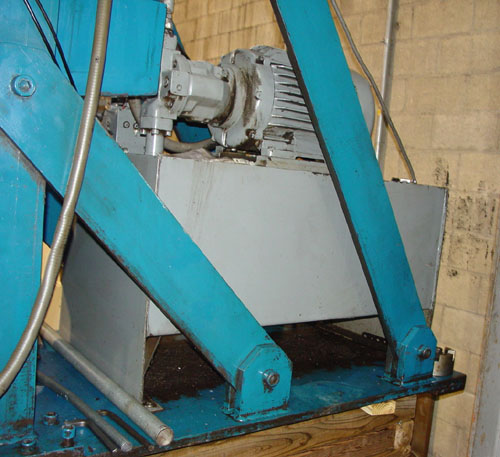

Hydraulic Motor ........................................ 20 HP
Coolant Pump Motor...................................... 3/4 HP
Electrics .............................................. 460/230/3/60
Approximate Machine Dimensions.......................... 60" X
60"
Approximate Machine Height (No Floor Pit)............... 254"
Approximate Machine Height (Pitted)..................... 203"
Approximate Machine Weight.............................. 10,000.
CONDITION: Machine Appears to be in Excellent Condition!
