19-5/8"
x 39-3/8" Electromagnetic Chuck, Automatic Incremental Power Downfeed,
Above the Wheel Diamond Dresser, Automatic Fine & RoughGrinding Cycles,
Automatic Downfeed Control to Wheelhead Slide,Automatic Recip & Crossfeed,
Automatic Lubrication, Coolant Filtration System.
CATALOGUE SPECIFICATIONS:
Max Table Working Surface............................
19-5/8"x39-3/8"
Magnetic Chuck Working Surface.......................
19-5/8"x39-3/8"
Maximum Table Workload without Chuck................. 1,980 LBS
Longitudinal Travel (X-Axis)......................... 43-1/4"
Cross Travel (Z-Axis)................................ 22"
Max Height Spindle Center to Table................... 28-5/8"
Table Longitudinal Feed Range (Variable)............. 16 - 82 FPM
Cross Travel Per Revolution.......................... .2"
Cross Travel Per Graduation.......................... .001"
Grinding Wheel Diameter.............................. 14"
Grinding Wheel Width................................. 2"
Grinding Wheel Hole Diameter......................... 5"
Grinding Wheel Motor................................. 7-1/2 HP
Grinding Wheel Speed................................. 1740 RPM

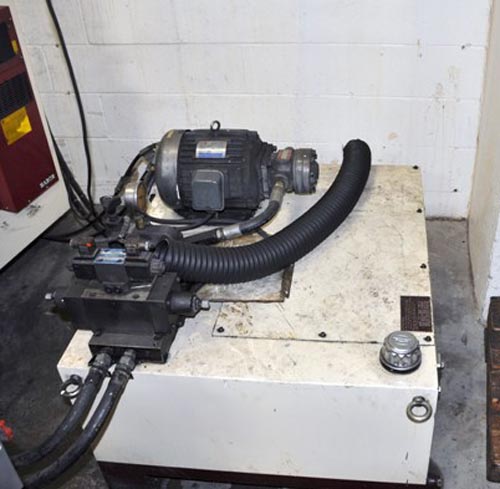

Hydraulic Pump Motor................................. 3 HP
Electrics............................................ 460/230/3/60
Approximate Machine Dimensions....................... 144" x 89"
Approximate Machine Height........................... 100"
Approximate Machine Weight........................... 14,000 LBS
CONDITION: Machine Appears to be in Excellent Condition!
