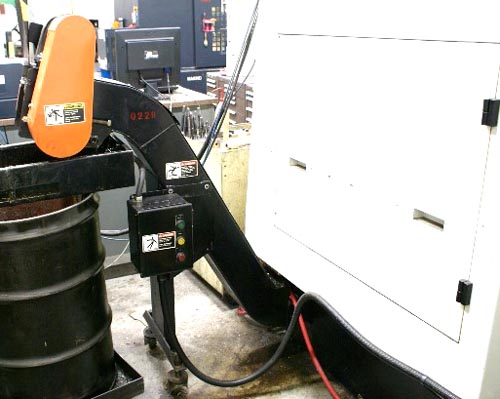

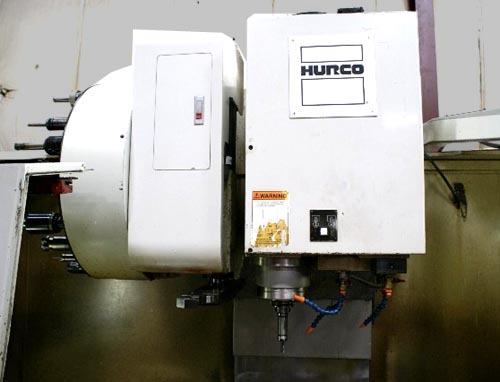

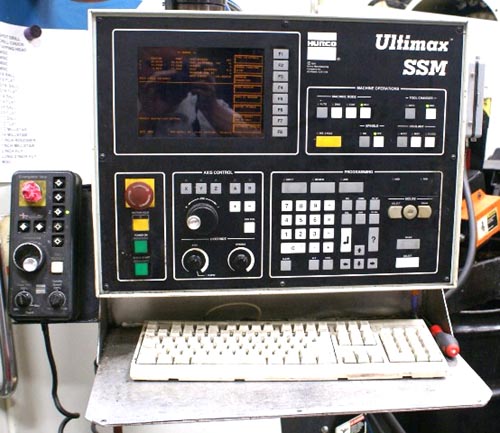

EQUIPPED WITH: Ultimax SSM CNC Control, 3D Programming, 4th Axis Interface, Remote Pendant, Renishaw Touch Probe, 24 Station Double Arm Automatic Tool Changer, Chip Conveyor, Full Enclosure, Coolant System.

CATALOGUE SPECIFICATIONS:

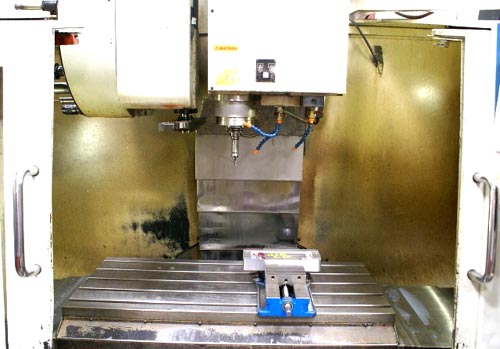

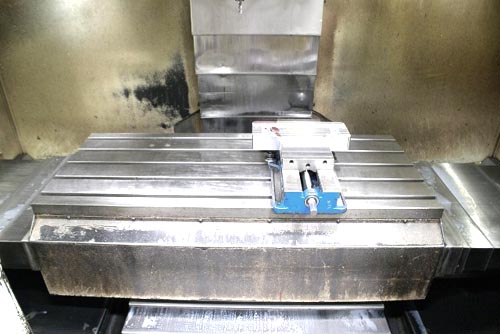

Table Size........................................ 48" x 20"

Longitudinal Travel (X-Axis)...................... 40"

Cross Travel (Y-Axis)............................. 20"

Vertical Travel (Z-Axis).......................... 24

Table Load Capacity............................... 1500 Lbs

Maximum Clearance Table Top to Spindle Nose....... 30"

Rapid Traverse X & Y Axis......................... 787 IPM

Rapid Traverse Z Axis............................. 530 IPM

Tool Storage Capacity............................. 24

Spindle Speeds Range.............................. 80-8000 RPM

Spindle Taper..................................... CAT 40

Approximate Machine Dimensions.................... 136" x 96"

Approximate Machine Height (Head Up).............. 100"

Approximate Machine Weight........................ 13,000 LBS
