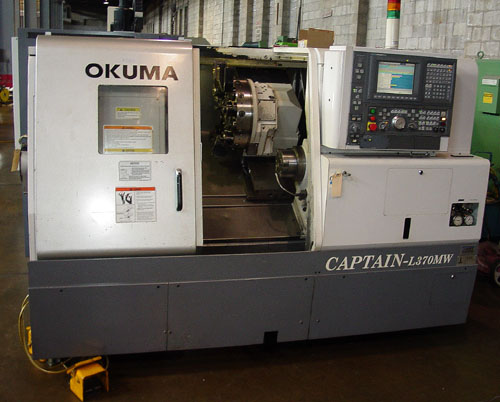

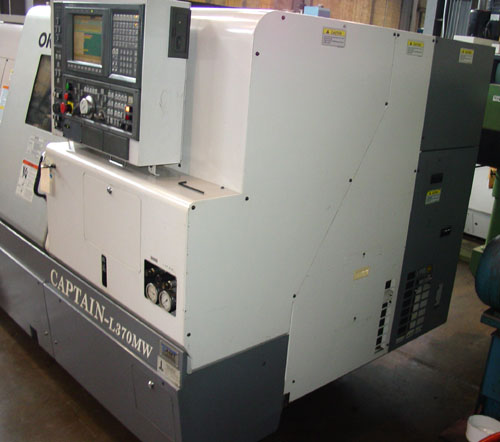

EQUIPPED WITH: Okuma E100L CNC Control w/CRT, Live
Tooling, 6.5" Kitagawa 3-Jaw Chuck Sub-Spindle, 10" Kitagawa
3-Jaw Chuck Main Spindle, Live Tooling, C-Axis, 3.15" Big Bore
Spindle Bore Option, Touch Setter, One Touch IGF, 3D Animation, Tool
Life Management, Tool Wear Compensation, Lap 4, User Task 2, Exp. Auto
Chamfering, Programming Help, Servo Link NC, Servo Link Spindle, Heavy
Tools, HI-G Control, Inch/Metric Switchable, (2)Axial Live Holders, Chip
Conveyor and Coolant System.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed......................................
20.08"
Maximum Turning Diameter Main Chuck.....................
14.56"
Maximum Turning Diameter Sub-Spindle....................
8.23"
Maximum Turning Length..................................
20.47"
Main Chuck Size.........................................
10"
Sub-Spindle Chuck Size..................................
6.5"
Cross Travel (X-Axis)...................................
10.23"
Longitudinal Travel (Z-Axis)............................
20.47"
Feed Range (Infinitely Variable)........................
.1-400 IPM
Rapid Traverse Rate (X-Axis)............................
787 IPM
Rapid Traverse Rate (Y-Axis)............................
984 IPM
Number of Turrets.......................................
1
Tool Positions..........................................
12 Total
Spindle Bore............................................
3.15"
Bar Capacity............................................
2.5"
Spindle Nose............................................
A2-8
Spindle Speed Range (1 RPM Increments)..................
75-3800 RPM
Spindle Horsepower......................................
30 HP
Approximate Machine Dimensions..........................
104" x 73"
Approximate Machine Height..............................
69"
Approximate Machine Weight..............................
10,200 LBS
CONDITION: Machine Has Less Than 4800 Cutting Hours and
Appears to be in Excellent Condition
!
