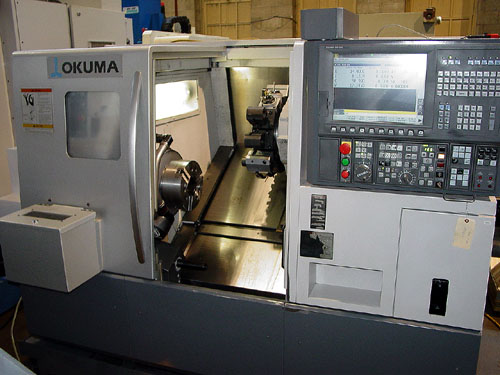

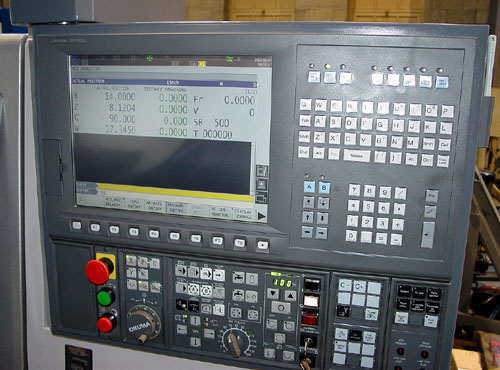

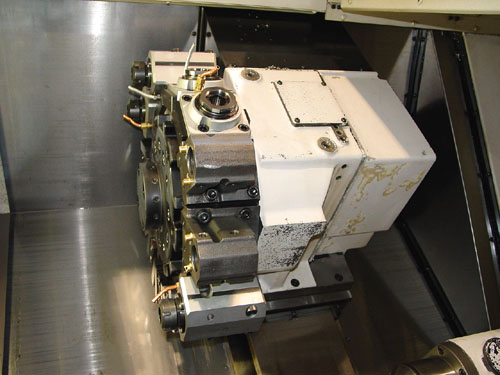

EQUIPPED WITH: Okuma P200 CNC Control w/CRT, Live

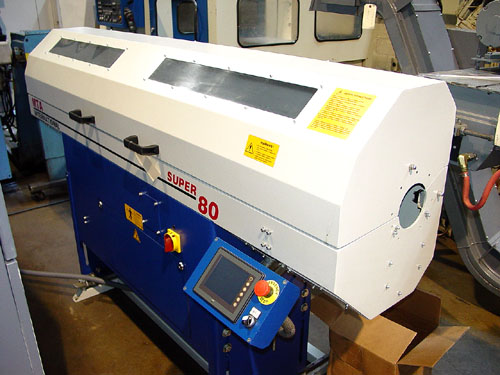

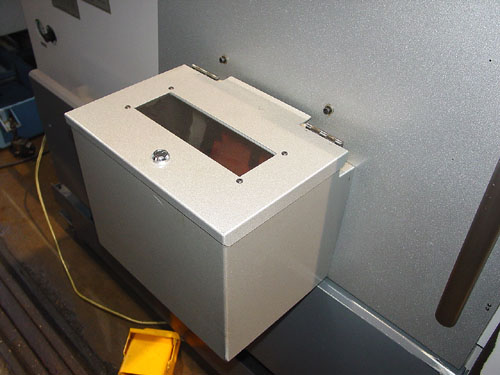

Tooling, C-Axis, MTA Super 80 Barfeeder, Parts Catcher, Touchsetter,

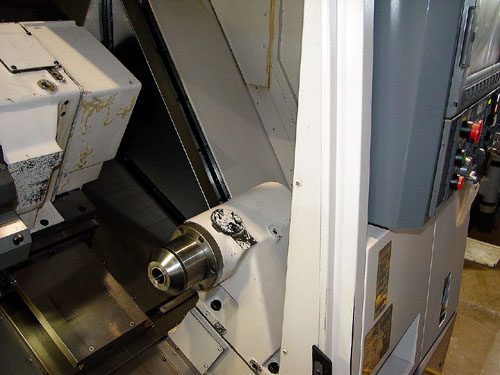

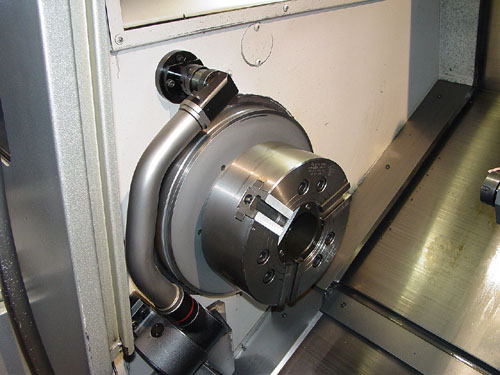

Live Quill Tailstock, 10"Kitagawa B210 Chuck, ADMAC Parts
Programming w/ IGF & 3D, Spindle Sync. Tapping, Lap 4, User Task 2,
3D Animation, Servo Link Spindle, Exp.Auto Chamfer, NC Torque Limit,
Spindle Fluctuate, Programming Help, MacMan, Tool Life Management, Tool
Wear Compensation, Cycle Time Check,Spindle Orient, Barfeeder Interface,

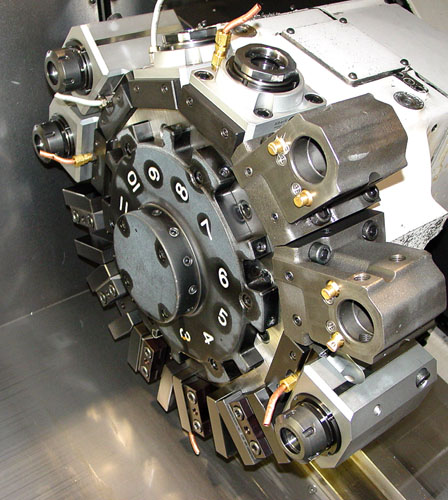

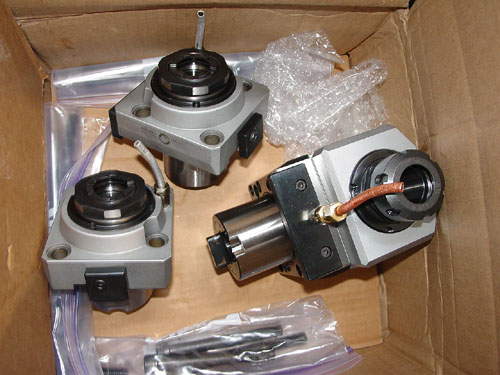

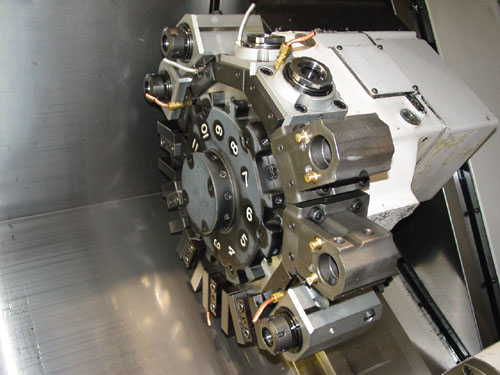

Large Alberti Live Tooling Package, High Pressure Coolant System, and

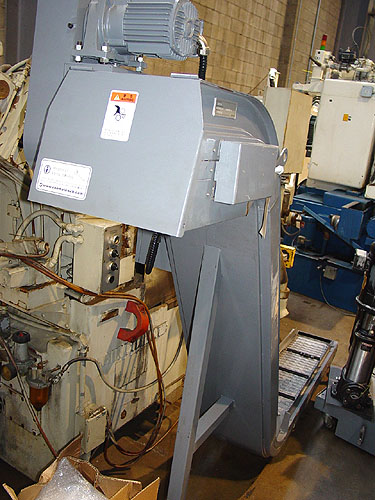

Chip Conveyor.
NOTE: New Replacement Price for this Machine with
Options is in Excess
of
$236,000. This Machine Has Only 1900 Cutting Hours.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed......................................
22.8"
Maximum Turning Diameter................................
16.14"
Maximum Turning Length..................................
19.69"
Chuck Size..............................................
10"
Cross Travel (X-Axis)...................................
10.24"
Longitudinal Travel (Z-Axis)............................
22.24"
Rapid Traverse Rate (X-Axis)............................
984 IPM
Rapid Traverse Rate (Z-Axis)............................
1181 IPM
Number of Turrets.......................................
1
Turret Positions........................................
12
Spindle Bore............................................
3.58"
Bar Capacity............................................
2.75"
Spindle Nose............................................
A2-8
Spindle Speed Range (1 RPM Increments)..................
45-5000 RPM
Spindle Horsepower......................................
30 HP
Rotary Tooling Horsepower...............................
9.6 HP
Rotary Tooling Speed Maximum............................
6000 RPM
Electrics...............................................
240/480/3/60
Approximate Machine Dimensions (Without Barfeeder)......
86" x 68"
Approximate Machine Height..............................
73"
Approximate Machine Weight (Without Barfeeder)..........
10,200 LBS

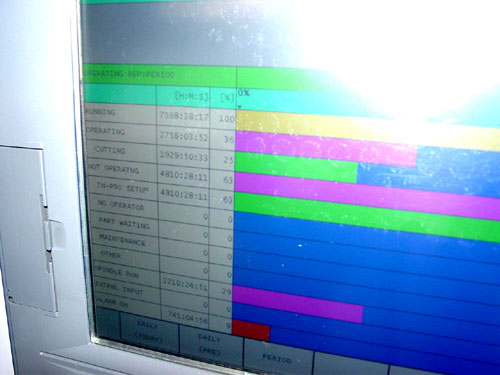

CONDITION: Machine Has Only 1900 Cutting Hours and
Appears to be in
