Mazak V-515 Vertical Machining Center

Stock Number P12183

Mazak V-515 For Sale, Used CNC Mill, CNC Vertical Machining Center

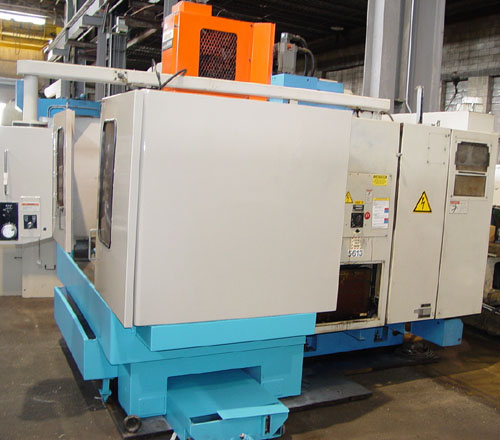

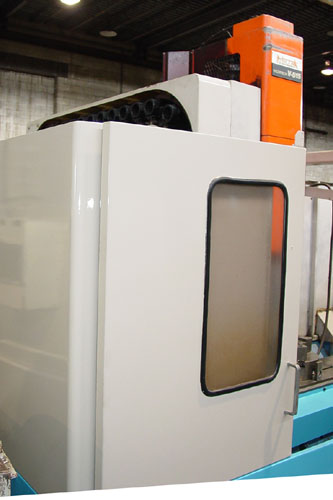

ACTUAL PHOTOS

Mazak V-515 Vertical Machining Center

Model V-515, S/N 108378, New 1993

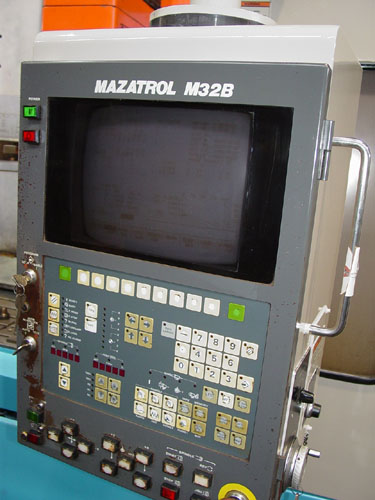

EQUIPPED WITH:Mazatrol M-32B CNC Control, RS-232 Port, Heavy Duty CAT 50 Spindle Taper, 30 Position Automatic Tool Changer, Full Enclosure, Coolant System.

CATALOGUE SPECIFICATIONS:

Table Working Surface............................. 51.2" x 21.7"

Table Load Capacity............................... 3,300 LBS

Longitudinal Travel (X-Axis)...................... 41.3"

Cross Travel (Y-Axis)............................. 20"

Vertical Travel (Z-Axis).......................... 22"

Rapid Traverse Rate (X & Y Axes).................. 945 IPM

Rapid Traverse Rate (Z-Axis)...................... 708 IPM

Spindle Face to Table Surface..................... 7.8" - 29.8"

Tool Storage Capacity............................. 30

Spindle Speeds Range.............................. 25 - 5000 RPM

Spindle Taper..................................... CAT-50

Approximate Machine Dimensions.................... 144" x 126"

Approximate Machine Height........................ 120"

Approximate Machine Weight........................ 18,700 LBS

CONDITION: Machine Appears to be in Excellent Condition!
