EQUIPPED WITH: Mitsubishi M52L CNC Control w/CRT, Live

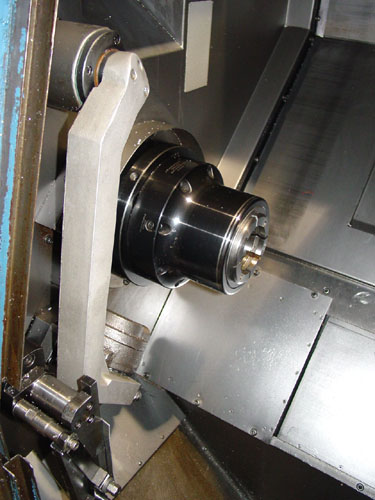

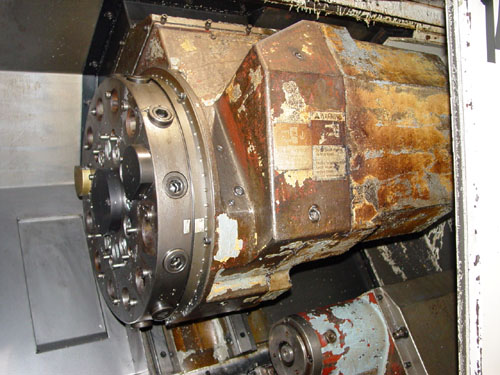

Tooling, RS232 Port, ATS Workholding 726AS-C18 Collet Chuck, 12 Position
Turret, Partial Parts Catcher, Touch Setter, Chip Conveyor and Coolant
System.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed......................................
21.7"
Maximum Swing Over Cross Slide..........................
13.8"
Maximum Turning Diameter Sub-Spindle....................
5.3"
Maximum Turning Length..................................
20.87"
Cross Travel (X-Axis)...................................
10.23"
Longitudinal Travel (Z-Axis)............................
20.47"
Number of Turrets.......................................
1
Tool Positions..........................................
12 Total
Spindle Bore............................................
3.15"
Bar Capacity............................................
2.5"
Spindle Nose............................................
A2-8
Spindle Speed Range (1 RPM Increments)..................
100-4000 RPM
Spindle Horsepower......................................
20 HP
Electrics...............................................
220/3/60
Approximate Machine Dimensions (w/o Chip Conveyor)......
114" x 72"
Approximate Machine Height..............................
77"
Approximate Machine Weight..............................
10,000 LBS

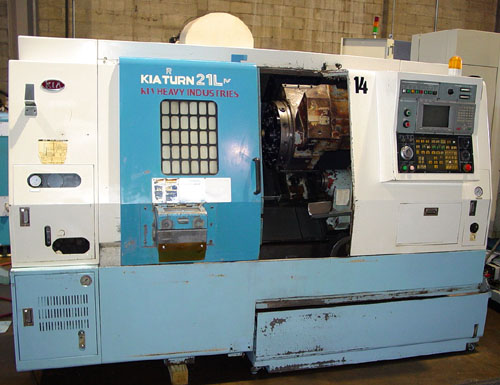

CONDITION: Machine Appears to be in Excellent Condition
!
