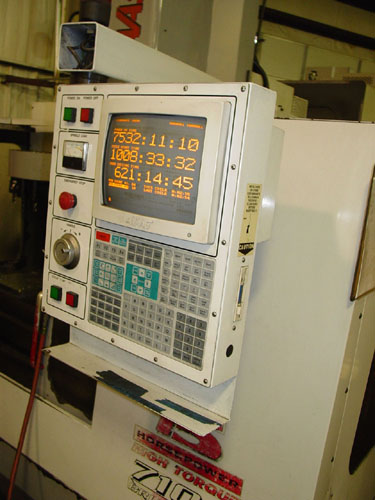

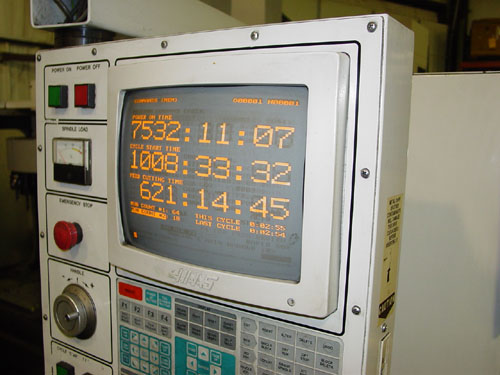

EQUIPPED WITH: HAAS 32-Bit High Speed CNC Control w/CRT, RS-232 Port,
3.5" Floppy Disk Drive, Programmable Coolant Nozzle, Inch or Metric

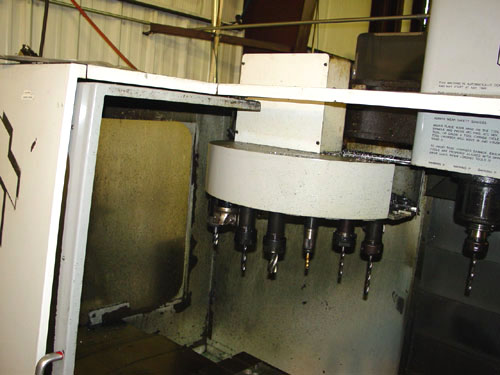

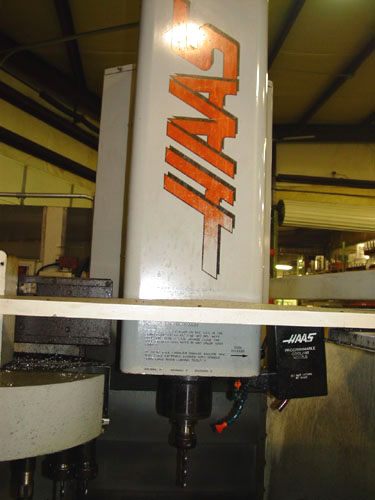

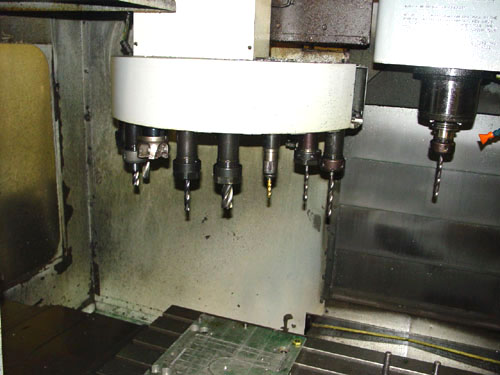

Programming, Rigid Tapping, Heavy Duty 15 HP Two-Speed Geared Spindle, 20
Station Automatic Tool Changer, Metal Way Covers, Removable Side View
Windows, Automatic Lubrication, Load Meter, Work Light, Chip Auger, Flood
Coolant System With Full Chip-Splash Enclosure.
CATALOGUE SPECIFICATIONS:

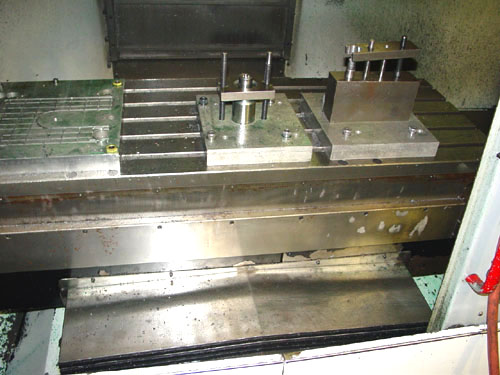

Table Working Surface............................. 18" x 58"
Table Load Capacity............................... 1,500 LBS
Longitudinal Travel (X-Axis)...................... 50"
Cross Travel (Y-Axis)............................. 20"
Vertical Travel (Z-Axis).......................... 25"
Maximum Clearance Table Top to Spindle Nose....... 29"
Feed Rates, All Axes.............................. 0 to 300 IPM
Rapid Traverse Rate, All Axes..................... 710 IPM
Tool Storage Capacity............................. 20
Spindle Horsepower................................ 15 HP
Spindle Speeds Range.............................. 0-7500 RPM
Spindle Taper..................................... No. 40 CAT
(V-Flange)
Electrics......................................... 208/230/3/60
Approximate Machine Dimensions.................... 124" x
118"
Approximate Machine Height........................ 119.5"
Approximate Machine Weight........................ 13,500 LBS
CONDITION: Appears to be in Very Good Condition !
