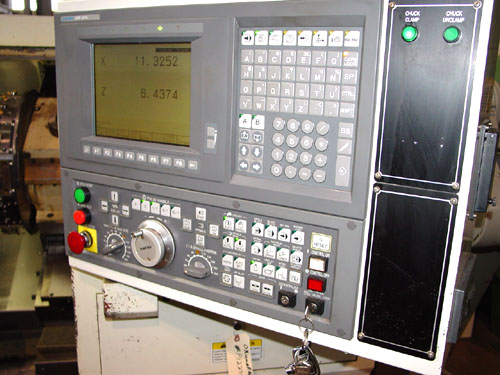

EQUIPPED WITH: OSP U10L CNC Control, One Touch

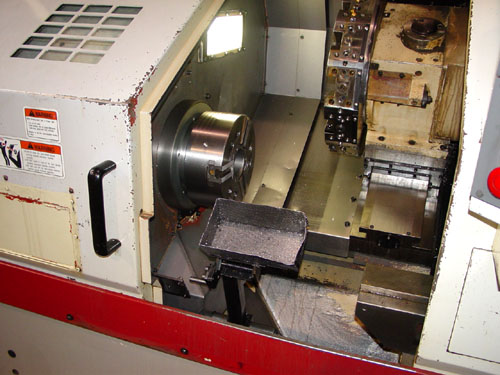

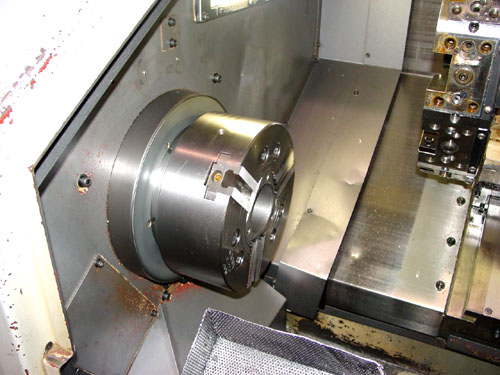

IGF, Barfeed Interface, Parts Catcher, 3-Jaw Hydraulic Chuck, 12
Position ID/OD Tool Turret, Expanded Auto Chamfer, Thread Feed Hold,
Animation, Programmable Tailstock, Lap-4, Nose R 2B, User Task 2, NC

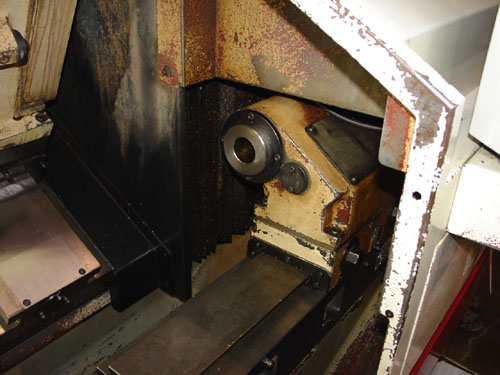

Torque Limit, Servo Link NC Servo Link Spindle, MACMAN, Hi-G Control,
Inch/Metric Switch, Cycle Time Calculator, Heavy Duty Slant Bed

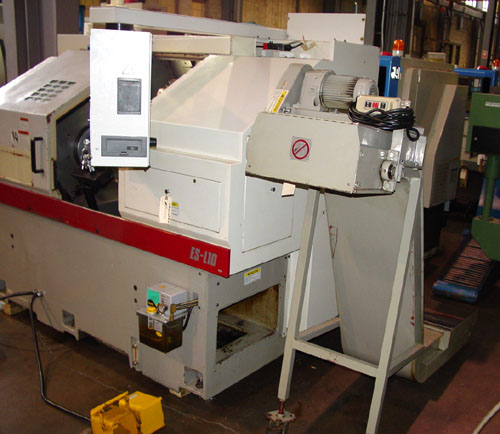

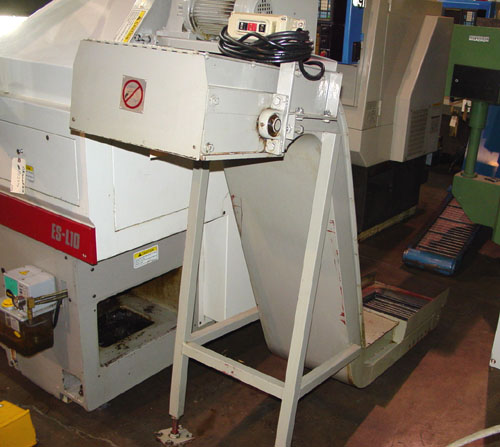

Construction, Chip Conveyor and Coolant System.
CATALOGUE SPECIFICATIONS:
Max Swing Over Slant Bed................................
21.65"
Max Swing Over Carriage.................................
12.20"
Max Distance Between Centers............................
19.68"
Cross Travel (X-Axis)...................................
8.10"
Longitudinal Travel (Z-Axis)............................
20.47"
Feed Range (Infinitely Variable) .......................
.1 to 200 IPM
Rapid Traverse Rate ....................................
590 IPM
Number of Turrets.......................................
1
Turret Positions........................................
12
Spindle Bore............................................
3.15"
Bar Capacity............................................
2.5"
Spindle Speed Range.....................................
25-3000 RPM
Spindle Drive Motor.....................................
15 HP
Electrics...............................................
220/3/60
Approximate Machine Dimension...........................
107" x 70"
Approximate Machine Height..............................
75"
Approximate Machine Weight..............................
8000 LBS
