17,600lb
Table Load Capacity, Coolant System.
CATALOGUE SPECIFICATIONS:
Table Size............................................ 57" x
161.4"
Table Load Capacity................................... 17,600 Lbs.
Table Height from Floor............................... 33.5"
Spindle Nose to Table Minimum......................... 7.87"
Spindle Nose to Table Maximum......................... 34.6"
Distance Between Columns.............................. 66"
Longitudinal Travel (X-Axis).......................... 161.4"
Cross Travel (Y-Axis)................................. 59"
Vertical Travel (Z-Axis).............................. 26.7"
Rapid Traverse Rate All Axes.......................... 591 IPM

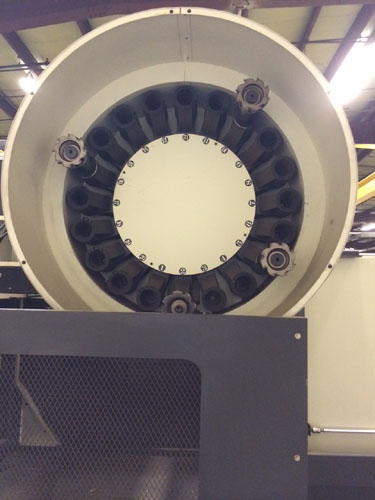

Tool Storage Capacity................................. 20
Spindle Horsepower (2-Speed Gearbox).................. 30 HP
Maximum Spindle Speed................................. 6000 RPM
Spindle Taper......................................... #50 CAT
Approximate Machine Dimensions........................ 470" x
180"
Approximate Machine Height............................ 177"
Approximate Machine Weight............................ 70,400 LBS
CONDITION: Machine Appears to be in Excellent Condition !
