Stock Number P12301

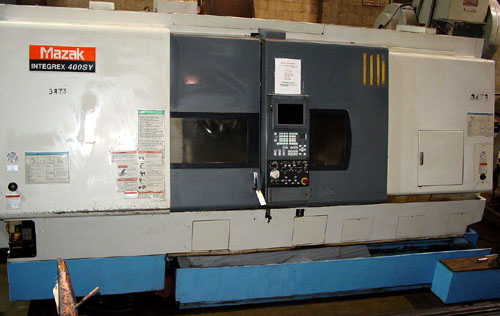

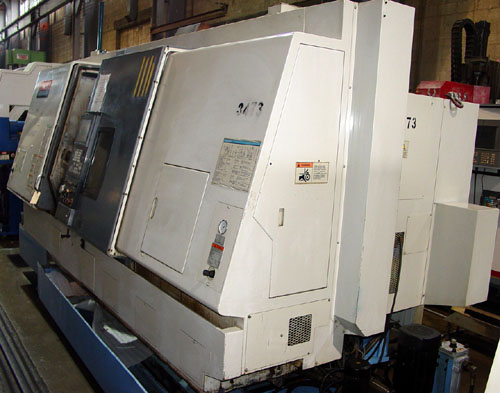

MAZAK INTEGREX 400 SY CNC TURNING/MILLING CENTER
Model Integrex 400SY, S/N 149186, New 2000



MACHINE DESCRIPTION:
The Mazak Integrex 400SY Turn/Mill Center is a Turning Center which
is Capable of Multiple Machining Processes, Such as End Milling, Face
Milling, Drilling, and Tapping, as well as Turning.


EQUIPPED WITH:

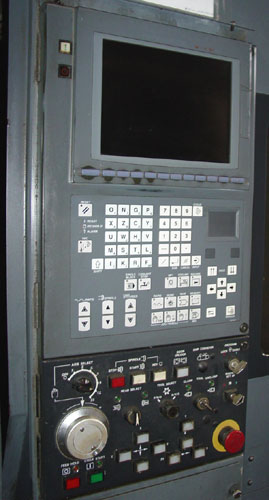

Mazak Mazatrol Fusion 640MT CNC Control, RS-232 Port, 20 Station

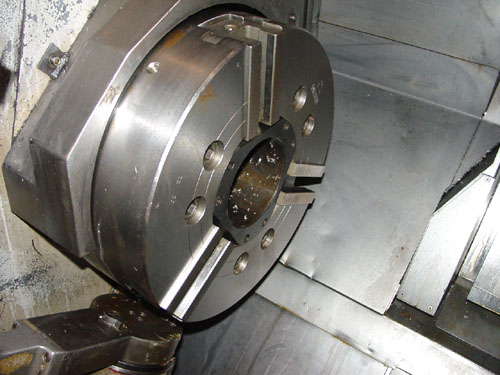

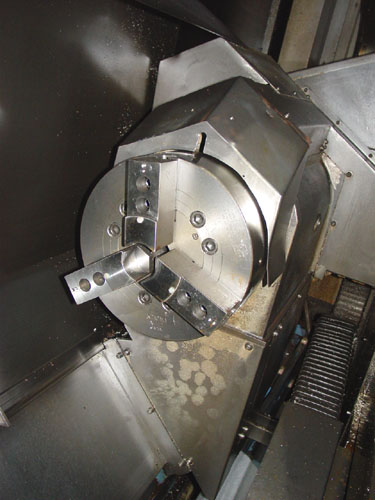

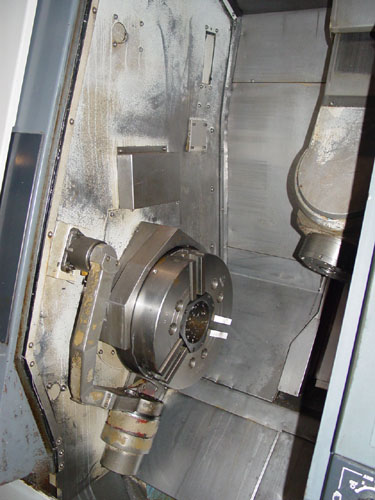

Automatic Tool Changer, 15" 3-Jaw Chuck on Main Spindle, 12" 3-Jaw Chuck

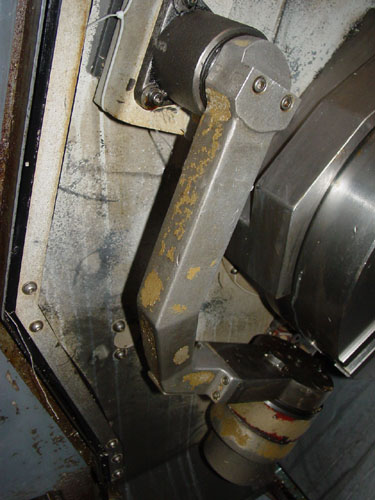

on Sub-Spindle, Automatic Tool Eye, Full C,B,A,Y Axis, Arrange for Thru

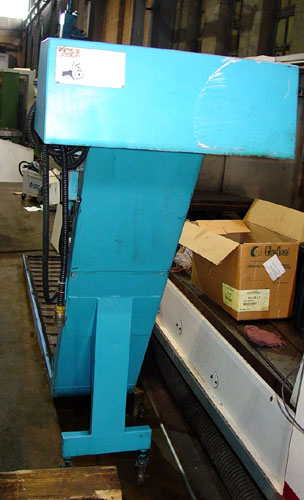

Spindle Coolant (Missing Thru Spindle Coolant System), Chip Conveyor,
Coolant System.


CATALOGUE SPECIFICATIONS:
Max Swing Over the Slant Bed............................ 24.02"
Cross Travel (X-Axis)................................... 22.83"
Maximum Machinable Length............................. 40.08"
Turret Slide (Y-Axis)................................... 8.27"
Tool Changer Capacity................................... 20 Total

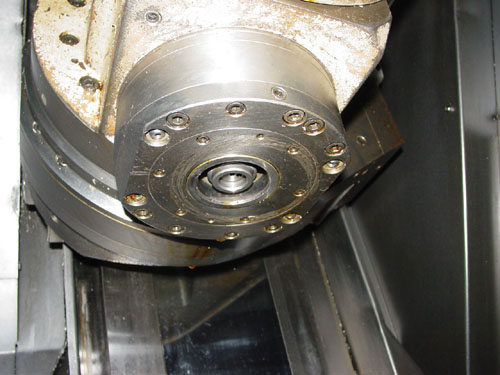

Rotary Tool Spindle..................................... 20 HP
Rotary Tool Spindle Speed Range......................... 35-6000 RPM
Hole Thru Spindle....................................... 3.56"
Main Spindle Horsepower................................. 40 HP
Main Spindle Speed Range................................ 35-3000 RPM
Sub-Spindle Horsepower.................................. 30 HP
Sub-Spindle Speed Range................................. 35-3500 RPM
Approximate Machine Dimensions.......................... 220" x 96"
Approximate Machine Height.............................. 120"
Approximate Machine Weight.............................. 23,000 Lbs


CONDITION: Machine Appears to be in Excellent Condition !
