Stock Number P12303
|
|

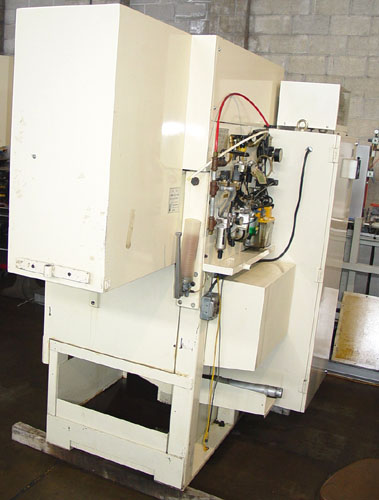

ACTUAL PHOTOS

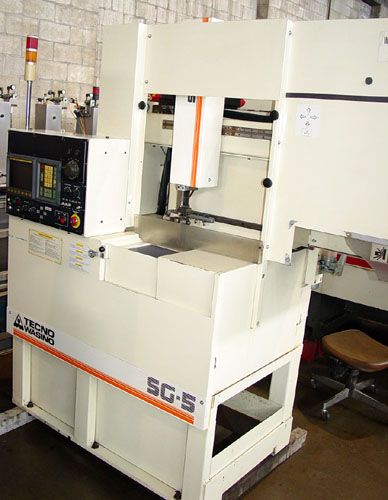

WASINO CNC GANG STYLE CNC LATHE
Model SG-5, S/N 588, New 1997
|
EQUIPPED WITH:

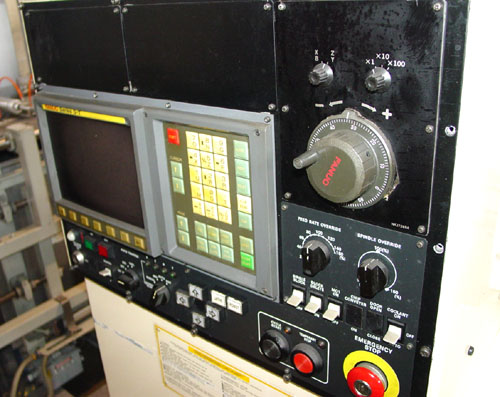

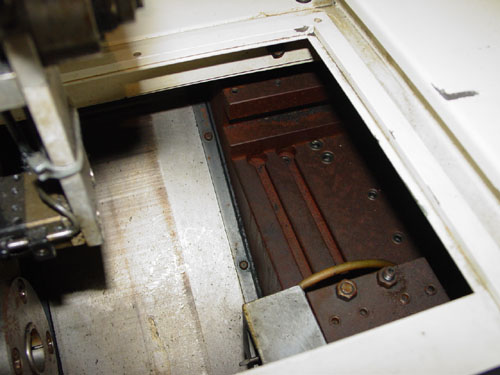

Fanuc 0T CNC Control w/ CRT, In-Line Gang Style Tooling w/ T-Slotted

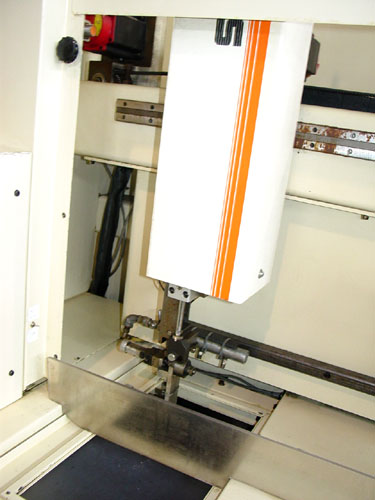

Cross Slide, S.Robo-O Integrated Gantry Type Robot for Automatic Loading

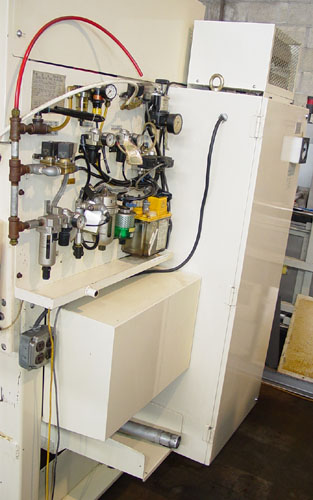

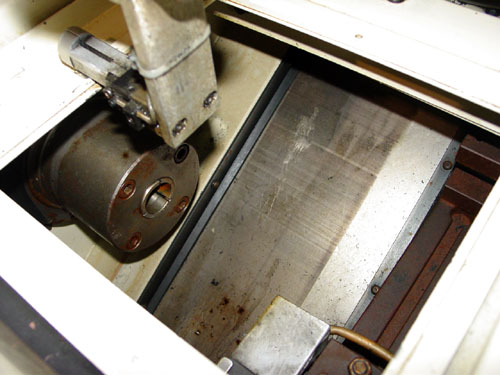

and Unloading, Flex-E-On FX 34 Collet Chuck, Tool Offsets, Coolant
System.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 9-1/16"
Nominal Workpiece (D x L)............................... 2" x 1-9/16"
Center Height from Floor................................ 40-3/4"
Spindle Bore............................................ 1-3/32"
Cross Travel (X-Axis)................................... 7-7/8"
Longitudinal Travel (Z-Axis)............................ 6-11/16"
Rapid Traverse Rate (X-Axis)............................ 315 IPM
Rapid Traverse Rate (Z-Axis)............................ 472 IPM
Tooling Type............................................ Gang
Maximum Spindle Speed (Inf. Variable)................... 4500 RPM
Spindle Horsepower...................................... 3 HP
Approximate Machine Dimensions.......................... 87" x 59"
Approximate Machine Height.............................. 93"
Approximate Machine Weight.............................. 3,500 LBS
CONDITION: Machine Appears to be in Excellent Condition !
|
|
|
