Stock Number P12309

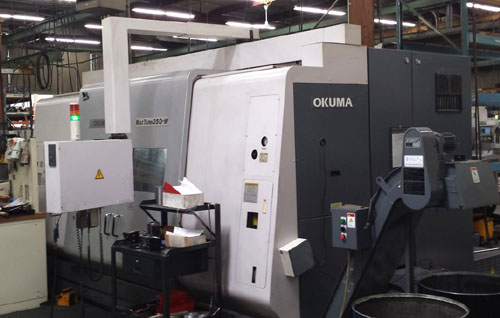

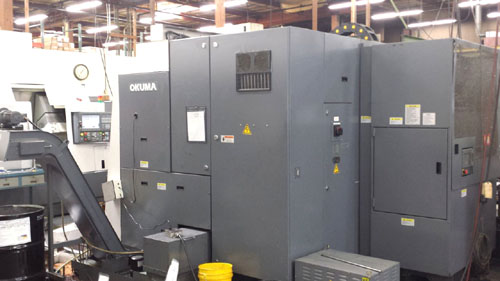

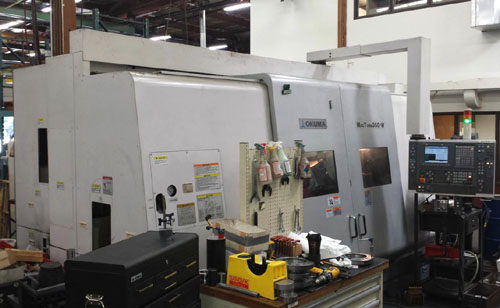

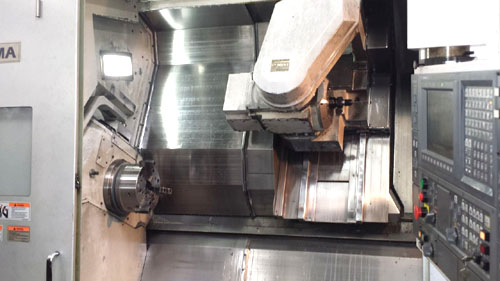

OKUMA MACTURN 350-W 1S-1500 MULTI AXIS CNC TURNING CENTER
New 2005

EQUIPPED WITH:

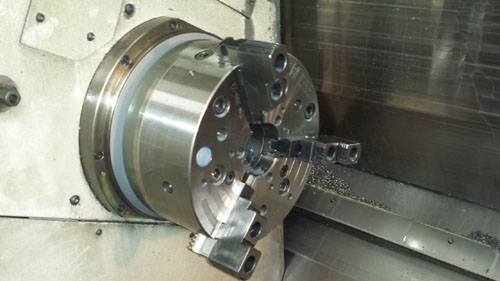

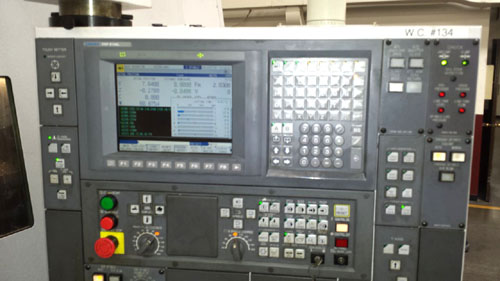

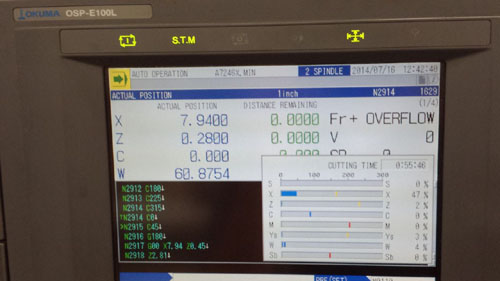

OSP E100L CNC Control, Live Tooling, Y-Axis, C-Axis, 8" 3-Jaw Chuck

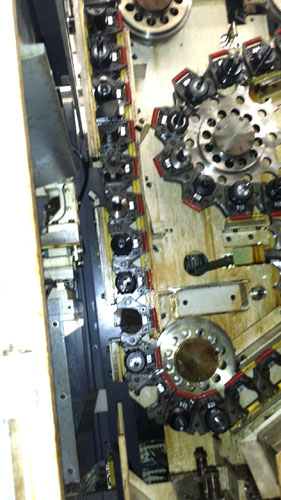

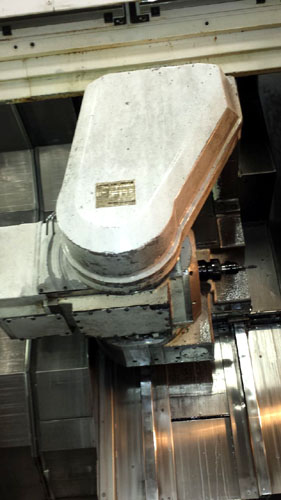

Main Spindle, 6" Chuck Subspindle, Upper Turret w/ Capto C6 Taper, 44
Station Automatic Toolchanger, Buffer 320M, HI-G Control, (96) Tool
Offsets, Synchronized Tapping, Heavy Tooling, Helical Cutting, Tool Wear
Compensation, Cycle Time Calculator, User Task 2, LAP 4, One Touch IGF,
Spindle Orientation, Touch Setter, Load Monitor, Chip Conveyor, Coolant
System.

CATALOGUE SPECIFICATIONS:

Max Swing Over Bed ..................................... 21.65"
Max Turning Diameter.................................... 20.87"
Toolchanger Capacity.................................... 44
Bar Capacity............................................ 2.04"
Main Chuck Size......................................... 8"
Main Spindle Horsepower................................. 30 HP
Sub Spindle Chuck Size.................................. 8"
Sub Spindle Horsepower.................................. 15 HP
Rotary Tooling Horsepower............................... 7.5 HP
Rotary Tooling Maximum RPM.............................. 6000 RPM
Cross Travel (X-Axis)................................... 19.88"
Longitudinal Travel (Z-Axis)............................ 65.75"
Y-Axis Travel........................................... 7.48"
Approximate Machine Dimensions.......................... 180" x 115"
Approximate Machine Height.............................. 116"
Approximate Machine Weight.............................. 32,000 LBS

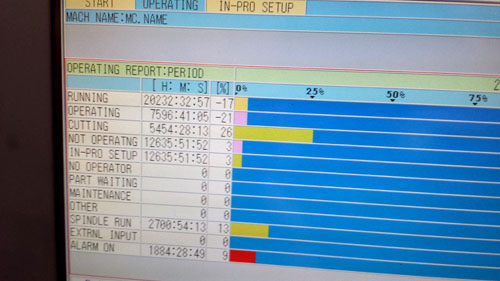

CONDITION: Machine Has Only 5454 Cutting Hours and Appears to be
Excellent Condition !
