Stock Number P12312

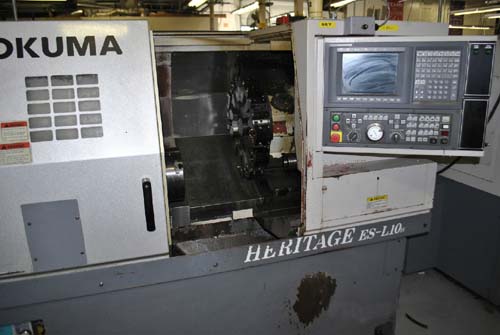

OKUMA HERITAGE ES-L10 II CNC TURNING CENTER
Model Heritage ES-L10 II, New 2007



EEQUIPPED WITH:

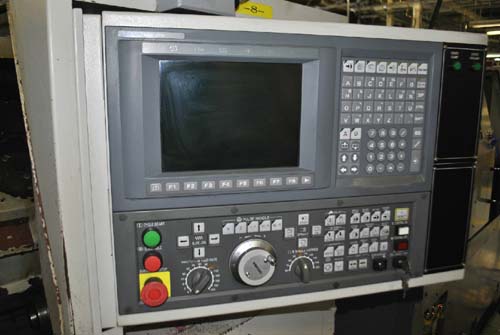

OSP U10L CNC Control, 12 Position ID/OD Tool Turret, Tailstock,
Inch/Metric Switch, Cycle Time Calculator, Heavy Duty Slant Bed
Construction, Chip Conveyor and Coolant System.


CATALOGUE SPECIFICATIONS:

Max Swing Over Slant Bed........................... 21.65"
Max Swing Over Carriage............................ 12.20"
Max Distance Between Centers....................... 19.68"
Cross Travel (X-Axis).............................. 8.10"
Longitudinal Travel (Z-Axis)....................... 20.47"
Rapid Traverse Rate (X-Axis)....................... 787 IPM
Rapid Traverse Rate (Z-Axis)....................... 984 IPM
Number of Turrets.................................. 1
Turret Positions................................... 12
Spindle Bore....................................... 3.15"
Bar Capacity....................................... 2.5"
Spindle Speed Range................................ 25-3000 RPM
Spindle Drive Motor................................ 15 HP
Electrics.......................................... 220/3/60
Approximate Machine Dimension...................... 101" x 77"
Approximate Machine Height......................... 71"
Approximate Machine Weight......................... 8,377 LBS


CONDITION: Machine Appears to be in Excellent Condition !
