Stock Number P12335

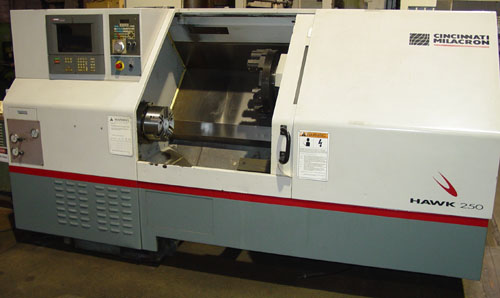

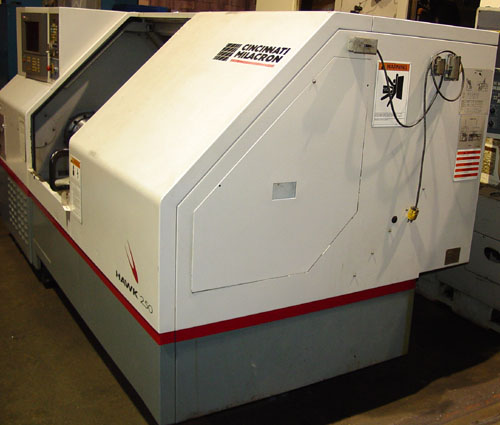

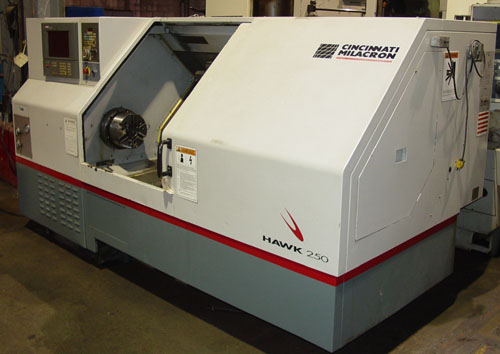

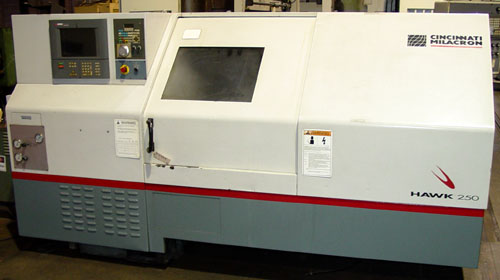

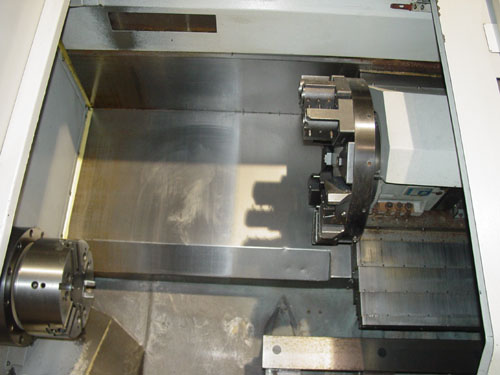

Model Hawk 250, New 1999, S/N 7060A0098-0020


EQUIPPED WITH:

Acramatic 2100 PC Based CNC Control with Color CRT, RS-232 Port, 10"

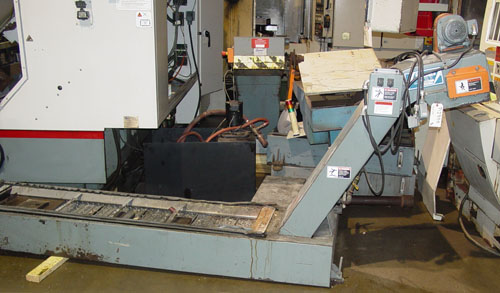

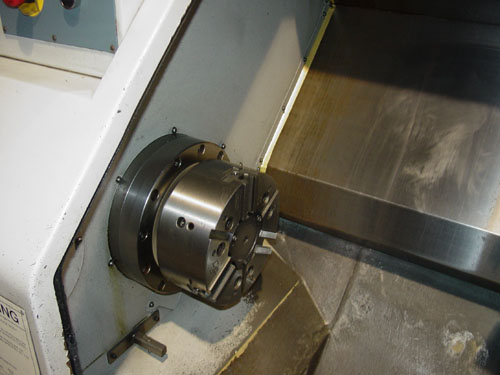

SMW Autoblok 3-Jaw Chuck, Hydraulic Tailstock, Chip Conveyor, and
Coolant System.


CATALOGUE SPECIFICATIONS:

Max Swing Over Bed...................................... 20.87"
Max Swing Over Carriage............................. 13.78"
Max Tailstock Position.................................. 54"
Chuck Size...................................................... 10"
Cross Travel (X-Axis)..................................... 10.63"
Longitudinal Travel (Z-Axis).......................... 27.17"
Feed Range (Infinitely Variable).................. .1-630 IPM
Rapid Traverse Rate (X-Axis)........................ 630 IPM
Rapid Traverse Rate (Y-Axis)........................ 1000 IPM

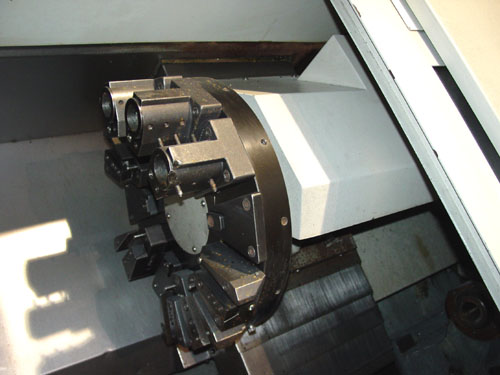

Number of Turrets............................................ 1
Tool Positions................................................... 12 Total
Spindle Bar Capacity....................................... 3.00"
Spindle Nose..................................................... A2-8
Spindle Speed Range (1 RPM Increments).30-3300 RPM
Spindle Horsepower...................................... 25 HP
Electrics............................................................ 230/460/3/60
Approximate Machine Dimensions............... 136" x 74"
Approximate Machine Height......................... 70"
Approximate Machine Weight........................ 11,300 LBS


CONDITION: Machine Appears to be in Excellent Condition!
