OKUMA MA-40HA HORIZONTAL MACHINING CENTER
Stock Number P12373
|

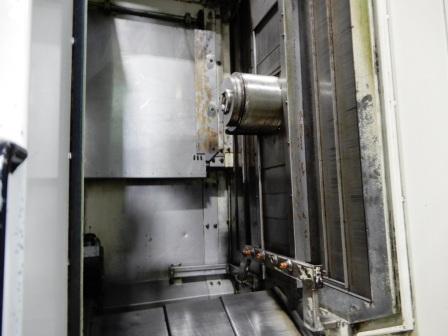

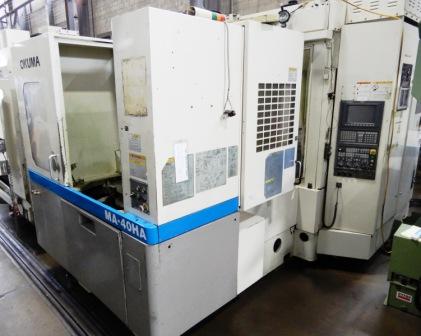

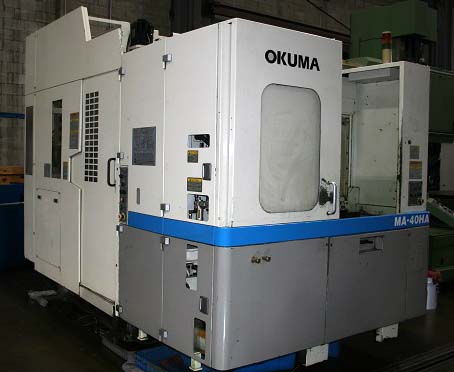

ACTUAL PHOTOS
OKUMA MA40HA CNC HORIZONTAL MACHINING
CENTER
Model MA-40HA, S/N 00574, New 2000
EQUIPPED WITH:
Okuma OSP-U100M CNC Control, Thru the Spindle Coolant, Synchronized
Tapping, Floppy Disc Drive, Tool Breakage Detection, Animation,
Inch/Metric Switchable, Cycle Time Reduction, (2) 15.75" x 15.75"
1-Degree Pallet w/Pallet-Shuttle 40 Position Automatic Tool Changer,
Chip Conveyor, Coolant System.
CATALOGUE SPECIFICATIONS:
Longitudinal Table Travel (X-Axis)................... 22"
Vertical Travel (Y-Axis)....................................... 24"
Head Cross Travel (Z-Axis)................................ 22"
Pallet Dimensions................................................ 15.75" x 15.75"
Maximum Pallet Load.......................................... 880 LBS
Number of Pallets................................................. 2
Number of Index Positions.................................. 360
Spindle Nose to Pallet Center Minimum........... 3.35"
Spindle Nose to Pallet Center Maximum.......... 27.95"
Rapid Traverse, All Axes..................................... 1574 IPM
Spindle Horsepower............................................ 20 HP
Spindle Taper........................................................ #40 CAT
Number of Tool Positions.................................... 40
Spindle Horsepower............................................. 20 HP
Electrics................................................................... 220/480/3/60
Approximate Machine Dimensions..................... 165" x 100"
Approximate Machine Height.............................. 118"
Approximate Machine Weight........................... 29,000 LBS
CONDITION: Machine Appears to be in Excellent Condition.
|
|
|
