MAKINO A-51 HORIZONTAL MACHINING CENTER

Stock Number P12404

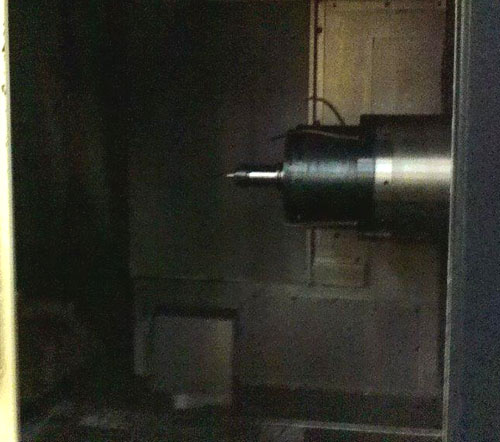

ACTUAL PHOTOS


                    MAKINO A51 CNC HORIZONTAL MACHINING CENTER
                                                                     New 2003

EQUIPPED WITH:

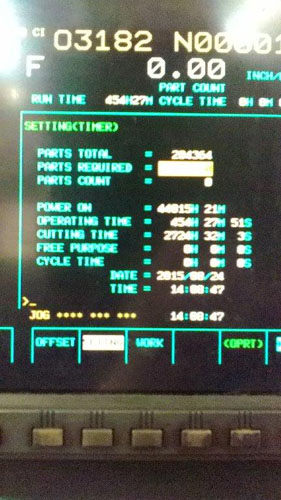

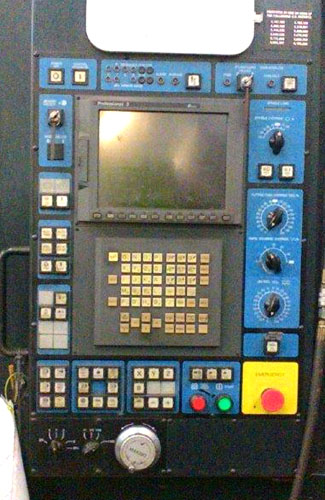

Fanuc Professional 3 CNC Control w/Color CRT (Fanuc 16i), Multi-Part
Program Storage, Helical Interpolation, Polar Coordinate
Interpolation, Inverse Time Function, Air Dryer, Additional (48)
Work Offsets, Angle Chamfering and Corner Rounding, Auto Z-Axis
Retract and Restart, (2) 15.7" x 15.7" Fully Contouring Pallets (360,000
Positions), 1000 PSI Thru the Spindle Coolant, Tool Life Monitor,
Spindle Load Monitor, 60 Station Automatic Tool Changer, Chip Conveyor,
Coolant System.


CATALOGUE SPECIFICATIONS:
Longitudinal Travel (X-Axis) ........................... 22.05"
Vertical Travel (Y-Axis) ............................... 22.05"
Spindle Travel (Z-Axis) ................................ 23.6"
Pallet Dimensions ...................................... 15.7"x15.7"
Maximum Pallet Load .................................... 880 LBS
Number of Pallets ...................................... 2
Number of Index Positions............................... 360,000
Feed Rate, All Axes .................................... 1574 IPM
Rapid Traverse, All Axes ............................... 1969 IPM
Spindle Horsepower...................................... 25 HP
Spindle Speed Range..................................... 50 - 12000 RPM
Spindle Taper .......................................... CAT 40
Number of Tool Stations ................................ 60
Approximate Machine Dimensions ......................... 183" x 75"
Approximate Machine Height.............................. 111"
Approximate Machine Weight.............................. 17,200 LBS


CONDITION: Machine Appears to be in Excellent Condition !
