Kitamura Mycenter 2XI Spark changer

CNC Vertical Machining Center w/ built in Pallet Changer

Stock Number Q10073

ACTUAL PHOTOS

                                                                      Video Link

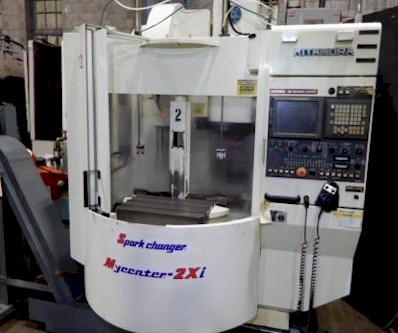

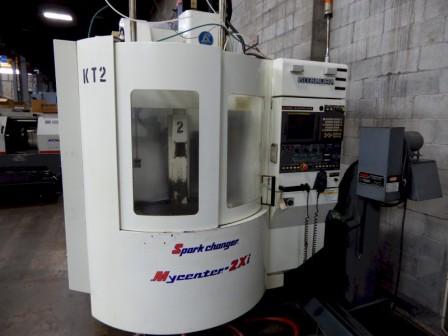

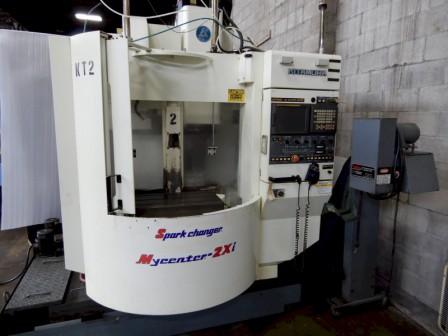

                       Kitamura Mycenter 2XI  CNC VERTICAL MACHINING CENTER
                                  Model 2XI Spark changer, New 2000 , Stock #Q10073


EQUIPPED WITH:

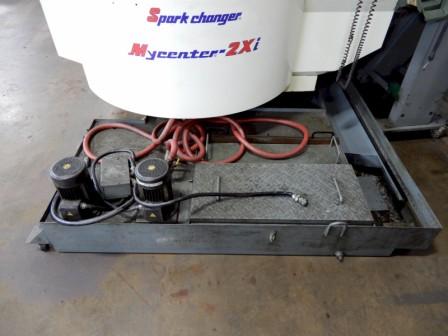

Fanuc 0-iM CNC Control, (2) Pallet  16" x 24" Spark changer (Built-in Pallet changer),     24 Station Automatic Tool Changer, Full Coolant Enclosure, Chip Conveyor, Coolant
System


CATALOGUE SPECIFICATIONS:

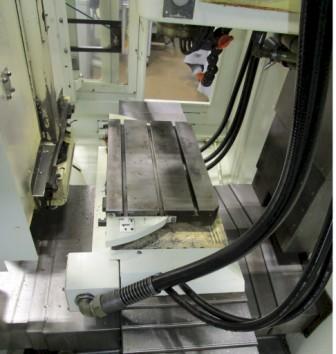

Table Working Surface..................................... 16" x 24"
Workpiece Change Setup................................. 0/180 Deg.
Workpiece Change Time.................................. 2.9 Sec. approx.
Spindle Face to Table Surface........................6.3"- 24.4"                                                      Table Load Capacity Per Side......................... 330 LBS                                                     Longitudinal Travel (X-Axis)............................ 22"
Cross Travel (Y-Axis)....................................... 16"
Vertical Travel (Z-Axis).................................... 18"
Rapid Traverse Rate (X&Y Axes)................... 1969 IPM

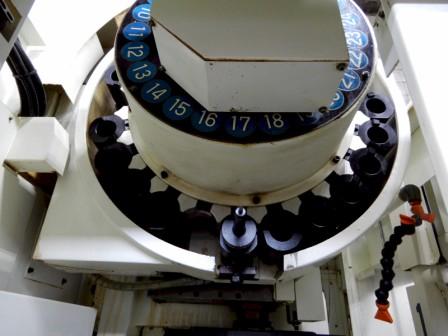

Tool Storage Capacity...................................... 24
Spindle Horsepower.......................................... 15 HP
Spindle Speed Range....................................... 20 - 10,000 RPM
Spindle Taper..................................................... #40
Approximate Machine Dimensions.................. 130" x 138"
Approximate Machine Height............................ 122"
Approximate Machine Weight........................... 6,600 LBS


CONDITION: Machine Appears to be in Excellent Condition !
