Hardinge/Bridgeport GX-1000 For Sale, Used CNC Vertical
Mill, CNC Vertical Machining Center, 4-Axis Vertical Machining Center for
sale
Hardinge / Bridgeport GX-1000 with Tilting Table
CNC Vertical Machining Center
Stock Number Q10081
|

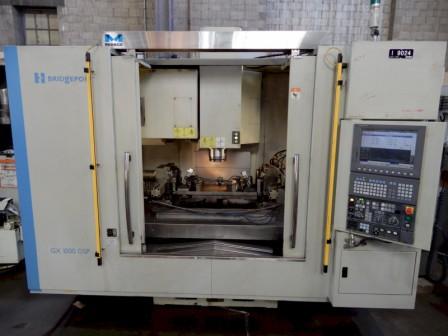

ACTUAL PHOTOS
Hardinge/ Bridgeport GX-1000
CNC VERTICAL MACHINING CENTER
Model GX-1000, s/n NVCB1H0157 , New 2011
Stock# Q10081
EQUIPPED WITH:
OSP-P200 CNC Control , 16" x 30" Trunnion Style 90 Degree Hydraulic
Tilting Table 'Add On' ,
10,000 RPM Spindle,(1) RS-232 Port and (2) USB Ports, 30 Position Automatic
Tool Changer, Full Coolant Enclosure, Chip Conveyor, Coolant System.
CATALOGUE SPECIFICATIONS:
Table Working Surface....................................... 44.09" x 21.25"
Table Load Capacity.......................................... 1,760 LBS
Longitudinal Travel (X-Axis)............................. 40.16"
Cross Travel (Y-Axis)........................................ 21.25"
Vertical Travel (Z-Axis)..................................... 21.25"
Rapid Traverse Rate (X, Y, Z Axes ).............. 1417 IPM
Maximum Feedrate Range (X, Y, Z Axes).... . 1- 472 IPM
Spindle Face to Table Surface....................... 5.70" - 26.97"
Tool Storage Capacity(Bi-directional)........... 30
Spindle Speeds Range................................... 40-10,000 RPM
Spindle Taper................................................... No. 40 -
Big Plus
Spindle Motor................................................... 20 HP
Electrics.............................................................
220/3/60
Approximate Machine Dimensions.................... 117" x 87"
Approximate Machine Height........................ 107"
Approximate Machine Weight........................ 12,500 LBS
CONDITION: Machine Appears to be in Excellent Condition!
|
|
|
