ACTUAL PHOTOS

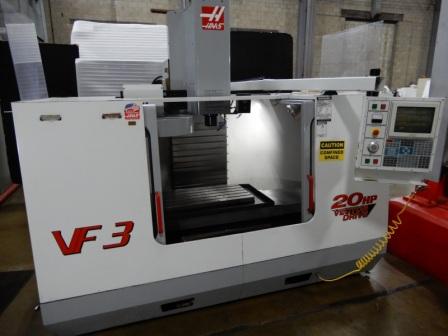

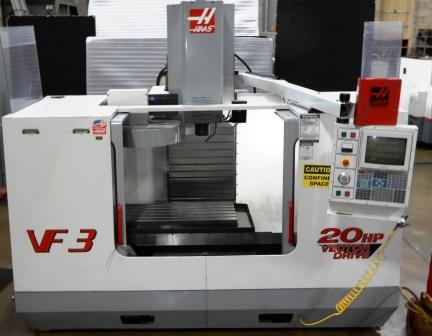

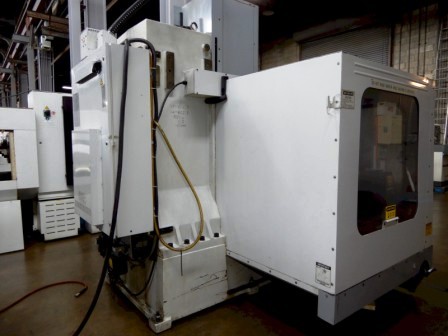

      HAAS VF-3 CNC VERTICAL MACHINING CENTER

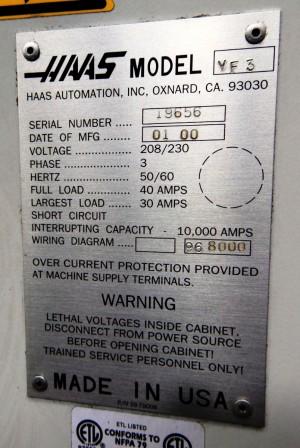

 Model VF-3, New 2000, S/N 19656

Stock# Q10187

EQUIPPED WITH:

HAAS CNC Control w/CRT, Inch or Metric Programming, Floppy Disk Drive,

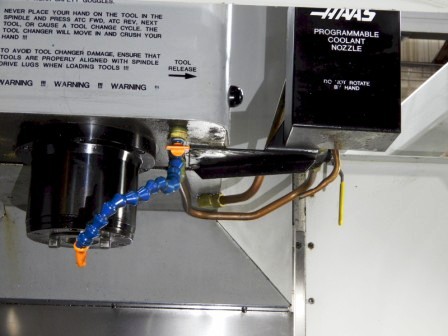

Quick Code, Rigid Tapping,  20 HP Spindle, 20 Station Automatic Tool Changer, Programmable Coolant, Chip Auger, Coolant System With Full Chip-Splash Enclosure.

ATTENTION:

ONLY 3,300 CUTTING HOURS.


CATALOGUE SPECIFICATIONS:

Table Working Surface.................................................... 18" x 48"
Table Load Capacity........................................................ 3,500 LBS
Longitudinal Travel (X-Axis).............................................. 40"
Cross Travel (Y-Axis)....................................................... 20"
Vertical Travel (Z-Axis).................................................... 25"
Maximum Clearance Table Top to Spindle Nose.................. 29"
Tool Storage Capacity...................................................... 20
Spindle Horsepower......................................................... 20 HP
Spindle Speeds Range.................................................... 7,500 RPM
Spindle Taper................................................................. No. 40 CAT
Approximate Machine Dimensions.................................... 110" x 118"
Approximate Machine Height........................................... 119.5"
Approximate Machine Weight.......................................... 12,500 LBS


CONDITION: Machine Appears to be in Excellent Condition!
