Charmilles Roboform 20 Ram Type CNC EDM

Stock # Q10189

ACTUAL PHOTOS

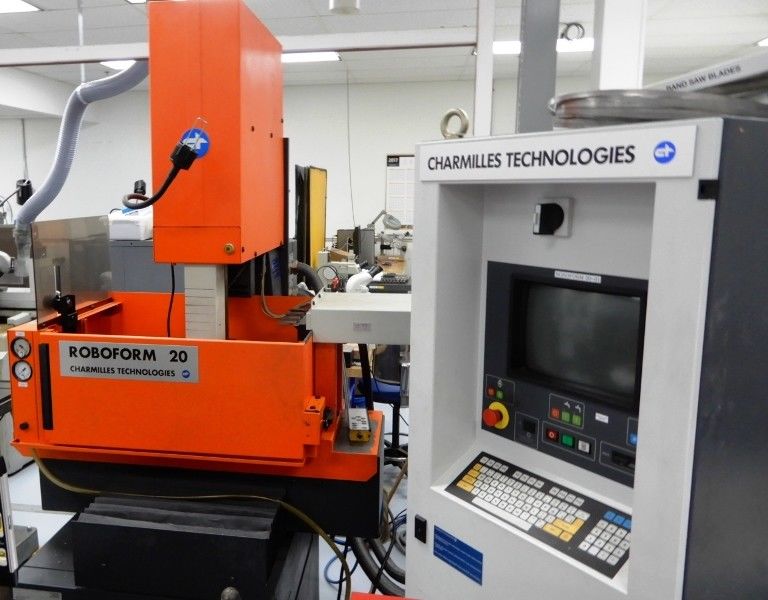

                               CHARMILLES ROBOFORM 20 RAM TYPE SINKER
                                              ELECTRIC DISCHARGE MACHINE
                      Model Roboform 20, S/N 210362, New 1996, Stock # Q10189


EQUIPPED WITH:

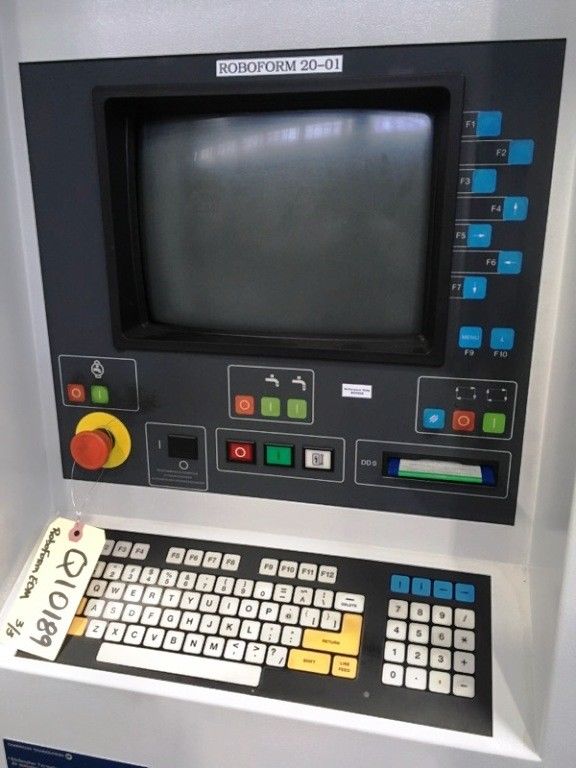

Charmilles CNC Control / Power Supply, On Board Programming, Built in Dielectric Tank & Filter, 32 Amp Generator, (4) Position Tool Changer.


CATALOG SPECIFICATIONS:
Work Tank Size (Inside Dimensions)...................... 25" x 17" x 9"

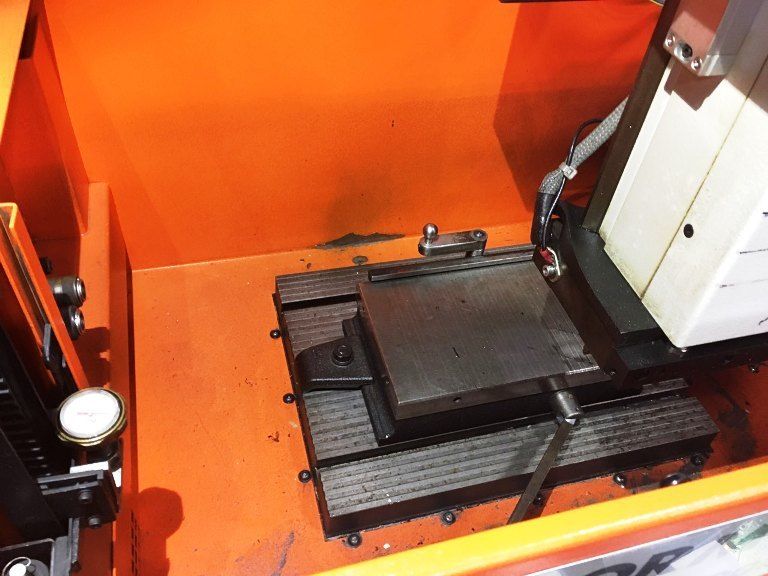

Table Working Surface........................................... 15.7"x 11.8"
Table Longitudinal Travel (X-Axis).......................... 11.81"
Table Cross Travel (Y-Axis)..................................... 9.85"
Head Vertical Travel................................................ 9.85"

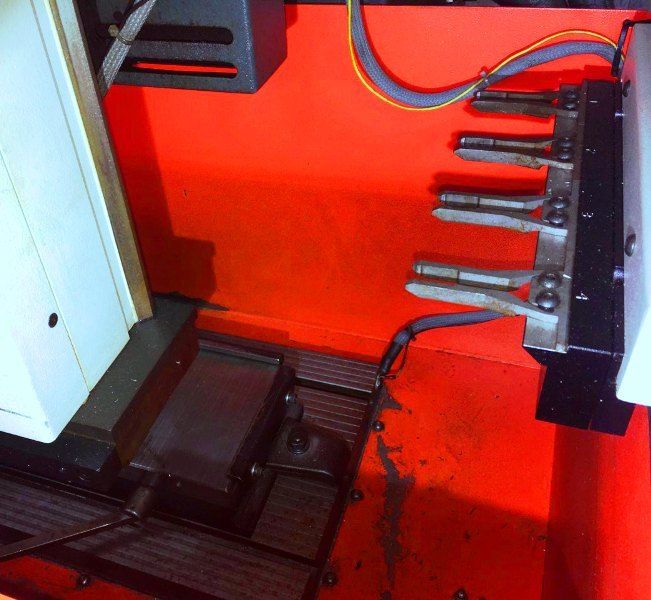

Tool Changer Type ................................................. Rack\Inside Tank
Dielectric Fluid Capacity ........................................ 55 GAL
Max Part Weight..................................................... 440 LBS
Maximum Amperage.............................................. 32 AMPS
Approximate Machine Dimensions......................... 80" x 52"
Approximate Machine Height................................. 92"
Approximate Machine Weight ................................ 1,760 LBS


CONDITION: Machine Appears to be in Excellent Condition!
                      From a Medical Facility Tool Room.
