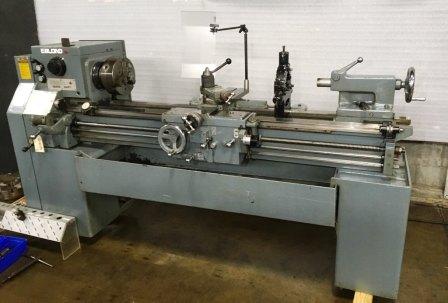

15" X 54" LEBLOND REGAL SERVO-SHIFT ENGINE LATHE

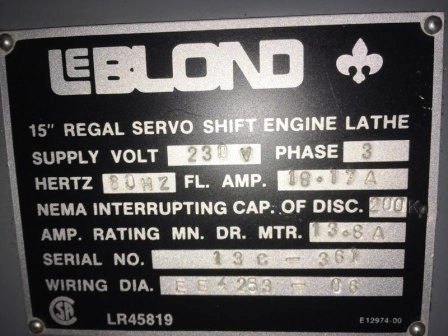

                       Model 15" Servo-Shift, New 1983, S/N 13C-361
                                                   Stock# Q10191

EQUIPPED WITH:

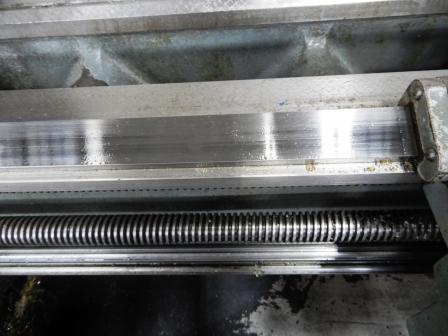

Hard and Ground Steel Bed Ways, Inch\Metric Threading, Thread Chasing Dial, 10"3-Jaw Cushman Chuck, 10" 4-Jaw Chuck, Collet Chuck, Taper Attachment, Steady Rest, Follow Rest, Quick Change Tool System, (12) Quick Change Tools, Facing Plate, Micrometer Carriage Stop, Four Position Cross Feed Stop, Radius Attachment Set, Radius Chip Pan, Built-in Coolant Pump.


CATALOGUE SPECIFICATIONS:

Max. Swing Over Bed Ways................................. 15-1/2"
Max. Swing Over Cross Slide.............................. 9-1/2"
Max. Distance Between Centers.......................... 54"
Cross Slide Cross Feed Travel............................ 7-7/8"
Compound Rest Travel.......................................... 3-7/8"
Hole Thru Spindle.................................................... 2-17/64"

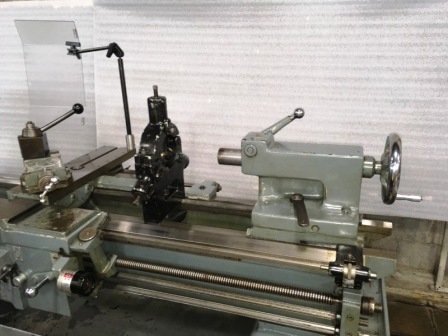

Tailstock, Spindle Travel........................................ 5"
Tailstock, Spindle Diameter.................................. 1-15/16"
Tailstock, Spindle Taper........................................ #4 MT
(12) Spindle Speeds, Range................................ 45 to 1800 RPM
Carriage Longitudinal Feeds (48)........................ .0018" to .104 IPR

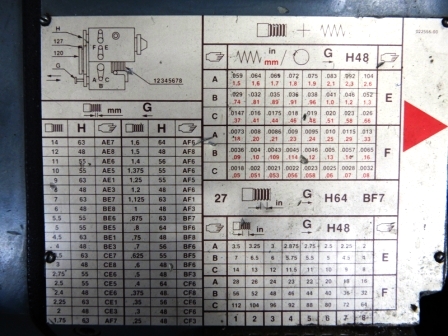

Threading Leads, Inch (48).................................... 2 to 112 TPI
Main Motor, Horsepower/RPM ............................. 7.5 HP
Electrics ................................................................... 230/3/60
Approximate Machine Dimensions ...................... 37" x 101"
Approximate Machine Height ............................... 68"
Approximate Machine Weight............................... 3,260 LBS

CONDITION: Machine Appears to be in Excellent Condition ! From a Medical
Facility Tool Room. Very Low Use.
