140 Ton x 12' Promecam RG125-36

 CNC Hydraulic Up-Acting Press Brake

Stock Number Q10193

ACTUAL PHOTOS

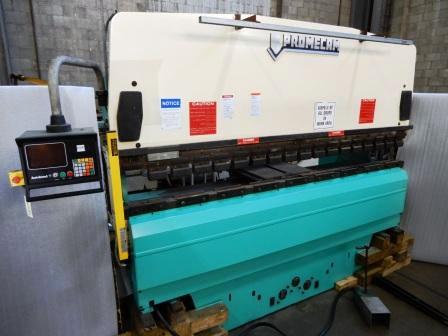

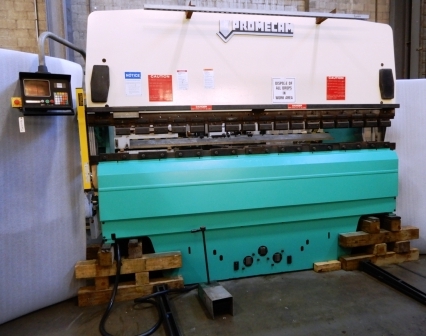

        140 TON X 12' PROMECAM HYDRAULIC UP-ACTING PRESS BRAKE

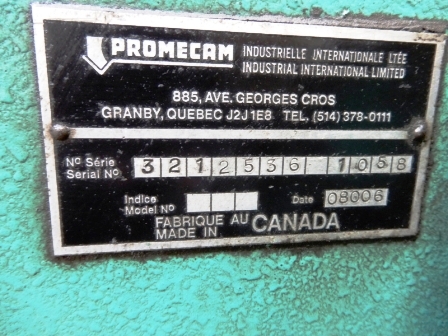

                     Model RG-125-36, S/N 3212536-1058, New 1989
                                               Stock # Q10193

EQUIPPED WITH:

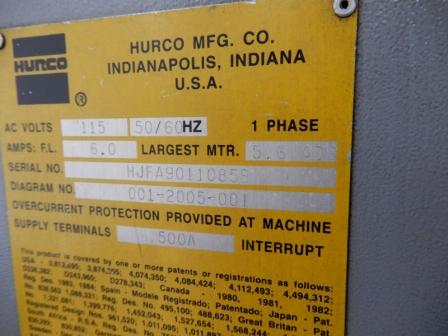

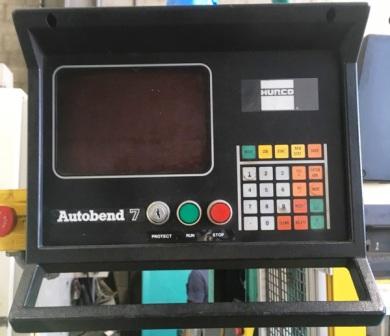

Hurco Auto bend 7 CNC 3 Axis ( X-Y-R) Back Gauge Control, Power Clamp, Coordinated Ram and Backgauge, Selectable Ram Control, Upgraded OSHA Safety Light Curtains, Hydraulic Foot Pedal Control,

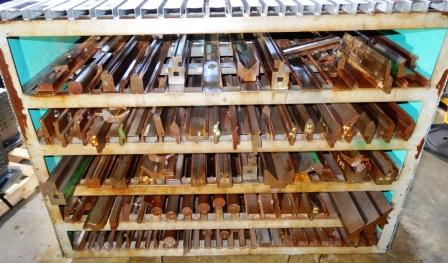

Note: Very Large Quantity of Dies Included, Very Low Hours- From Walt Disney World

CATALOG SPECIFICATIONS:

Overall Bed Length ........................................... 144" (12')
Maximum Bending Length................................ 122" (10'2")
Distance Between Housings.............................. 132" (11')
Tonnage Capacity:............................................. 140 Ton
Throat Depth...................................................... 16"
Length of Stroke................................................ 4""
Open Height without Die Adapters................... 12"
Open Height with Die Adapters........................ 8"
Ram Speed (Advance)....................................... 106 IPM
Ram Speed (Press)............................................. 12 IPM
Return Speed...................................................... 135 IPM
Drive Motor........................................................ 15 HP
Electrical System ................................................ 230/480/3/60
Approximate Machine Dimensions.................... 158" x 79"
Approximate Machine Height............................ 119"
Approximate Machine Weight............................ 21,000 Lbs

CONDITION: Machine Appears to be in Excellent Condition from Disney World's Tool Room!!
