Hardinge DV-59 Second Operation Lathe

Stock # Q10212

Used Hardinge DV-59 Second Operation Tool Room Lathe For Sale, Used Lathe For Sale

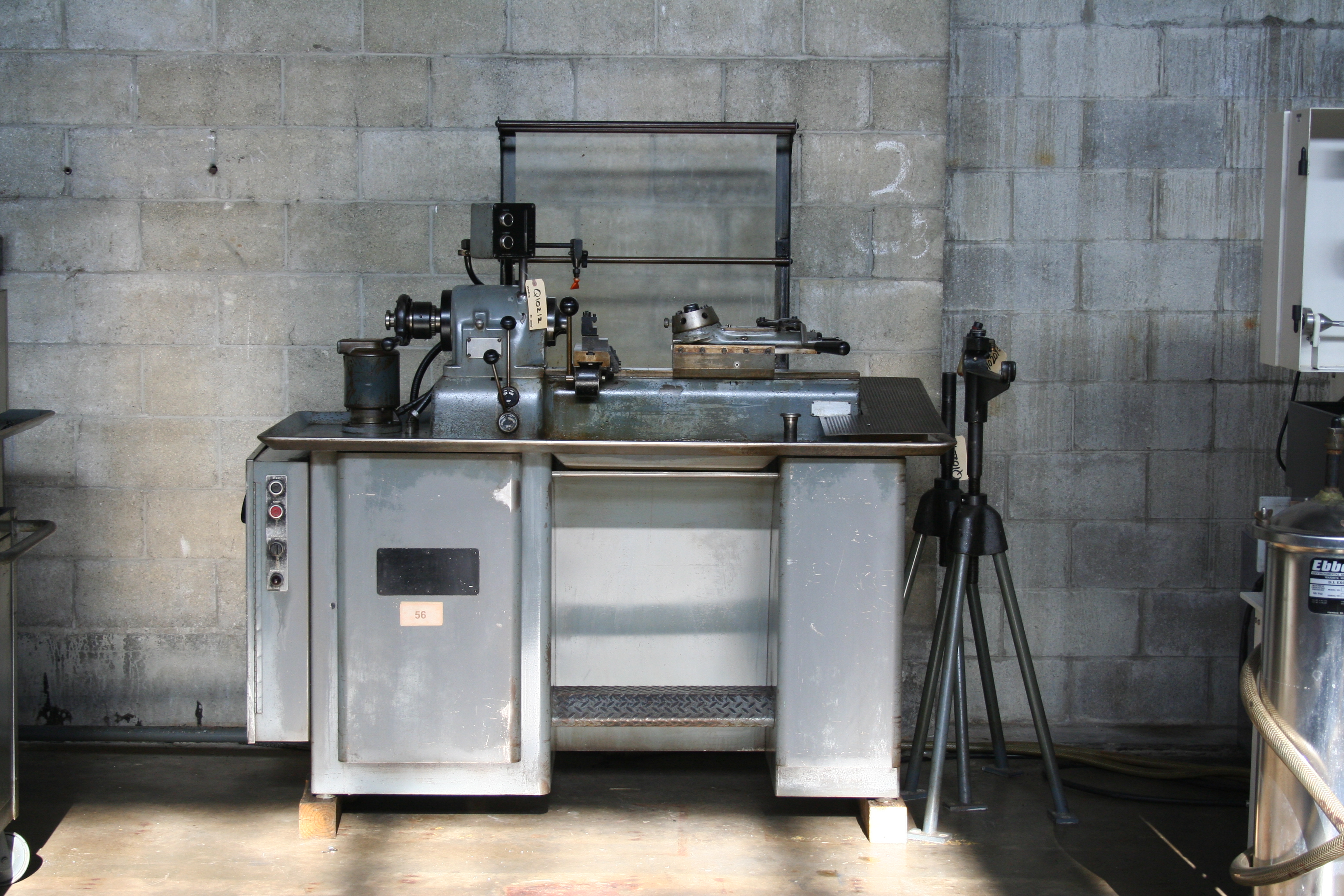

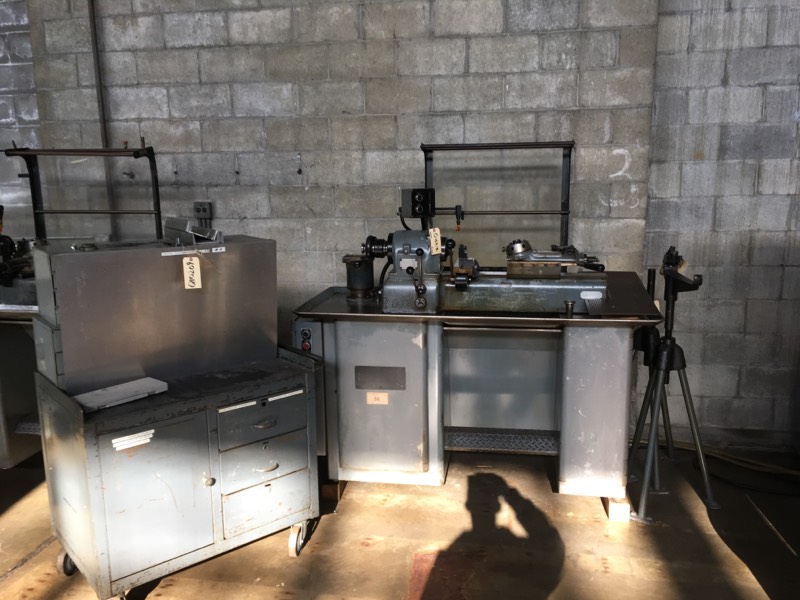

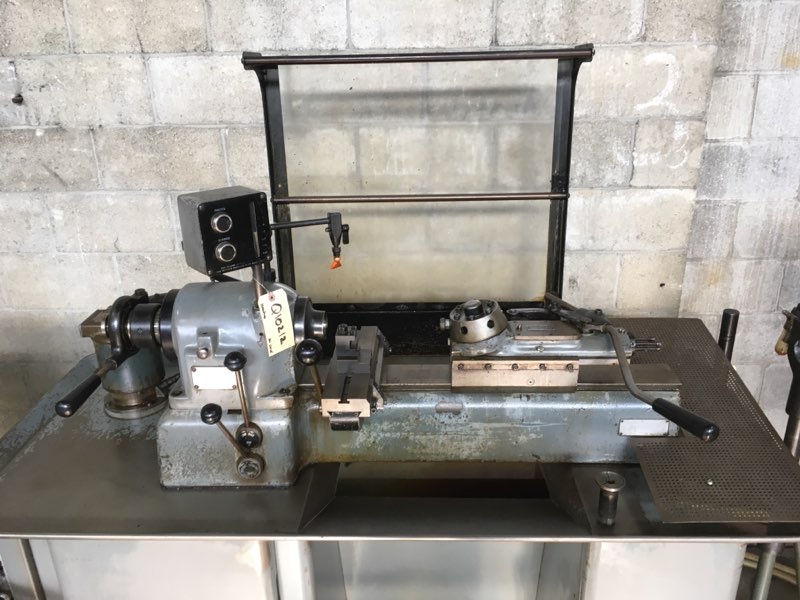

ACTUAL PHOTOS

                                          Hardinge DV-59 Second Operation Lathe

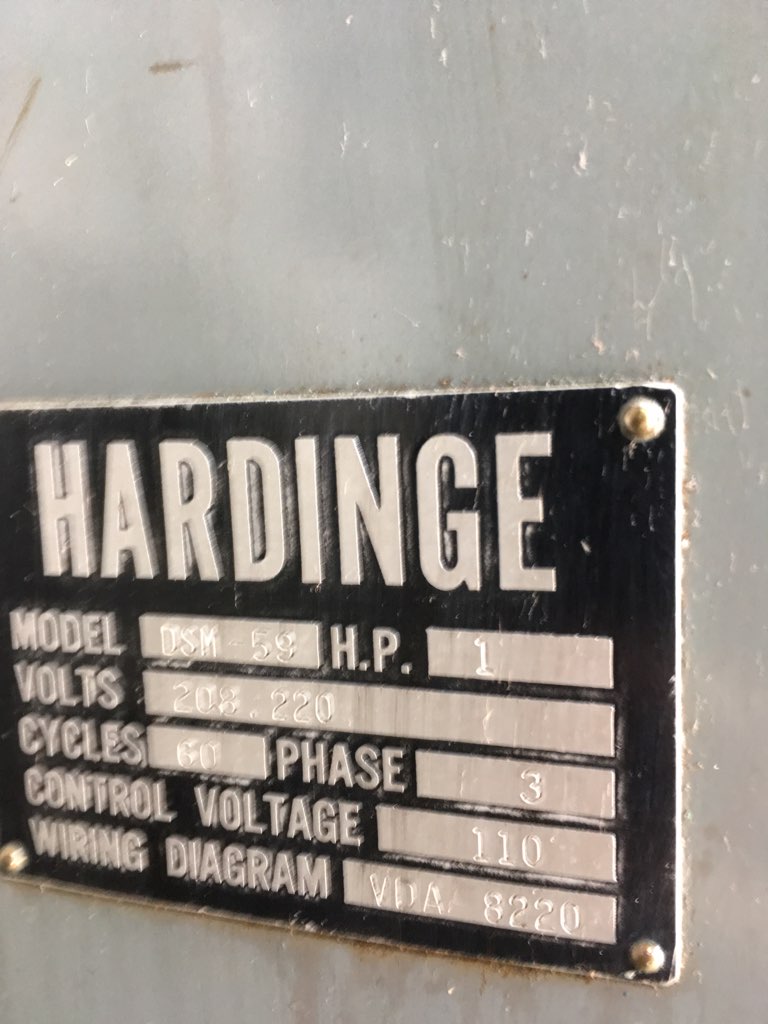

                                 Model DV-59/DSM-59, S/N DV59-00105, New 1955
                                                         Stock# Q10212

EQUIPPED WITH:

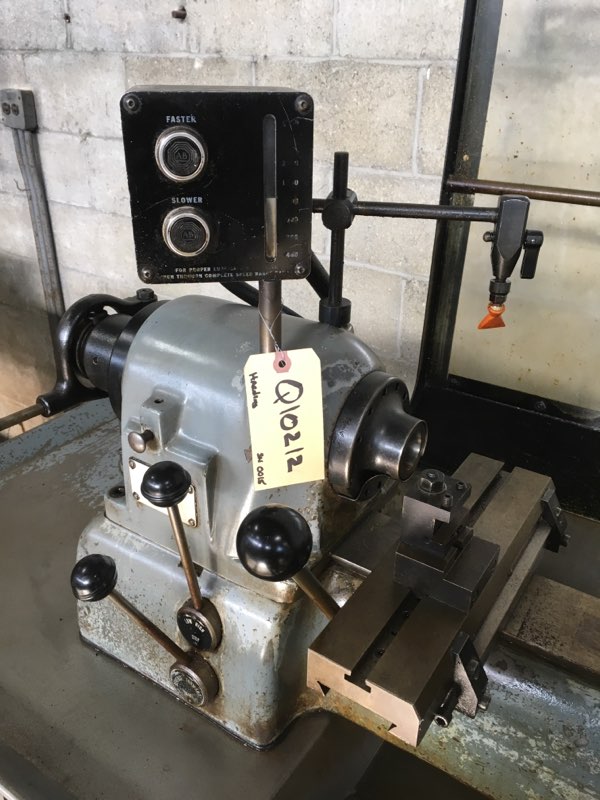

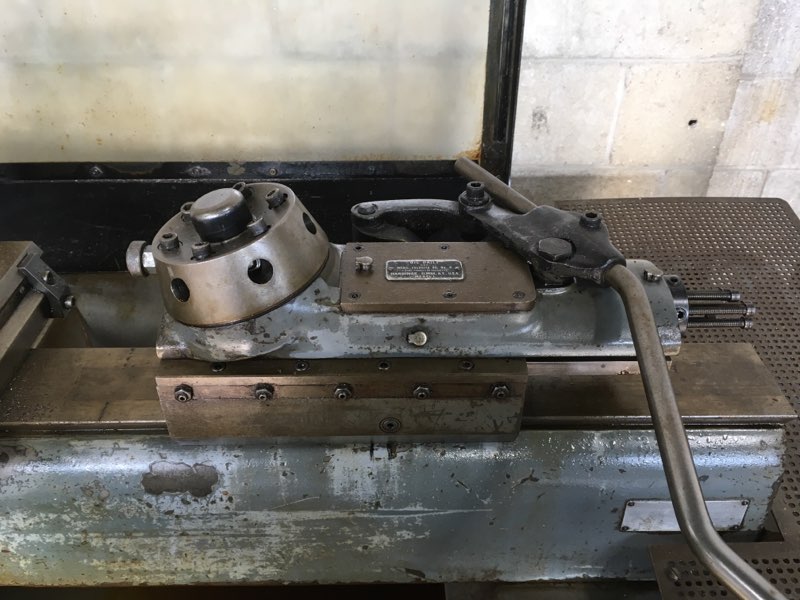

Super Precision Preloaded Ball Bearing Spindle, Variable Speed Spindle, Hardinge Dovetail Bed with Hardened & Ground Ways, Automatic Indexing Six Position Turret, Cutoff Attachment, Tool Cross Slide with Tool Post, Coolant System, Tooling Included, Chip & Coolant Shield.

CATALOG SPECIFICATIONS:
Spindle Work Piece Capacities:
          With Round Collets............................... 1-1/6"
          With Hex Collets................................... 7/8"
          With Square Collets.............................. 3/4"
          With Jaw Chucks.................................. 6"
          With Expanding Collets........................ 3"
Length of Bed................................................. 36"
Swing Over the Bed........................................ 9"
Cross Slide Travel........................................... 3-3/4"
Turret Slide Travel........................................... 4"
No. of Spindle Speeds..................................... Infinitely Variable
Range, Spindle Speeds.................................. 230 - 3500 RPM
No. of Turret Stations...................................... 6
Dia. Of Turret Holes........................................ 5/8"
Spindle Motor.................................................. 2 HP
Electrics ......................................................... 460/220/3/60
Approximate Machine Dimensions................. 32" x 67"
Approximate Machine Height......................... 56"
Approximate Machine Weight........................ 1,000 LBS

CONDITION: Machine Appears to be in Very Good Condition!
