Bridgeport Series II Heavy Duty Vertical Knee Mill

Stock # Q10217

Used Bridgeport Series II Heavy Duty Vertical Knee Mill For Sale, Used Vertical Mill For Sale

ACTUAL PHOTOS

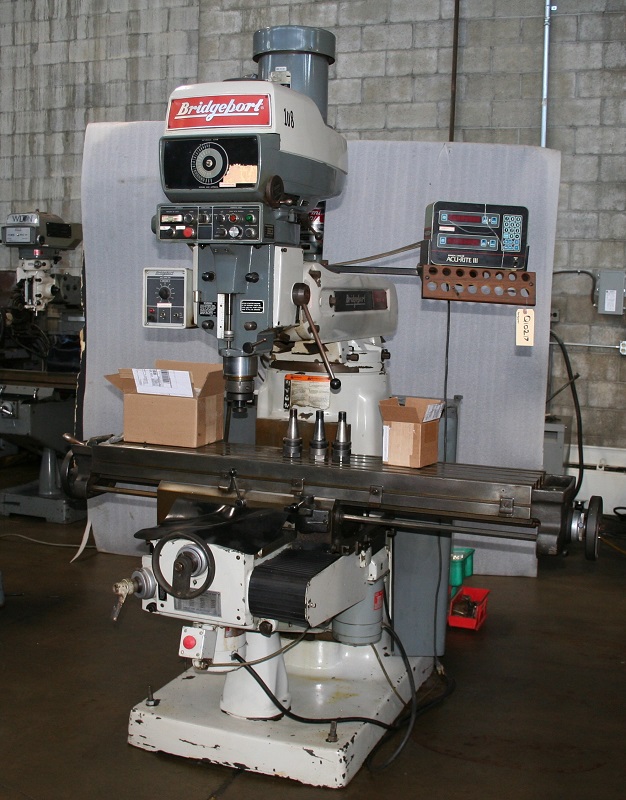

                           Bridgeport Series II Heavy Duty Vertical Knee Mill
                                                    New 1981, S/N 5828
                                                         Stock# Q10217

EQUIPPED WITH:
This Machine is the Large Frame 4 HP Bridgeport with a 4J Style Variable Speed Head, Knee Lock, Swivel Type Dovetail Overarm, Head Adjusts 90 Degrees Left or Right and 45 Degrees Front or Back, 360 Degree Rotation, Automatic Lubrication.

CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L.................. 11" x 58"
Table Working Surface, W X L...........................11" x 58"
Table Load Capacity.......................................... 1,500 LBS
Longitudinal Table Travel (X-Axis).................... 30"
Cross Saddle Travel (Y-Axis)............................ 15"
Vertical Knee Travel (Z-Axis)............................ 16"
Quill Travel........................................................ 5"
Ram Travel....................................................... 16"
Spindle Taper.................................................... 40 Std. Taper
Spindle Speeds Range..................................... 50 - 3500 RPM
Longitudinal and Cross Feeds.......................... 3/8 - 24 IPM
Vertical Feeds, Range (Head).......................... 3/16 - 12 IPM
Power Rapid Traverse, Long. & Cross............. 24 IPM
Power Rapid Traverse, Vertical....................... 12 IPM
Motor, Horsepower........................................... 4 HP
Electrics .......................................................... 230/460/3/60
Approximate Machine Dimensions.................. 84" x 120"
Approximate Machine Height........................... 93"
Approximate Machine Weight.......................... 5,500 LBS

CONDITION: Appears to be in Excellent Condition!
