10" x 31" Cincinnati # R-78 Plain Production Cylindrical Grinder

Stock # Q10251

Used 10" x 31" Cincinnati # R-78 Plain Production Cylindrical Grinder For Sale, Used Cylindrical Grinder For Sale

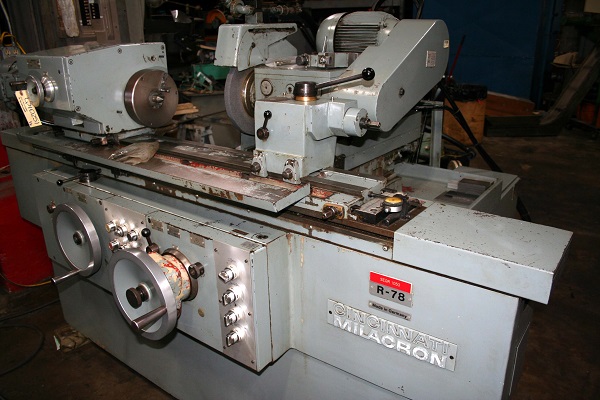

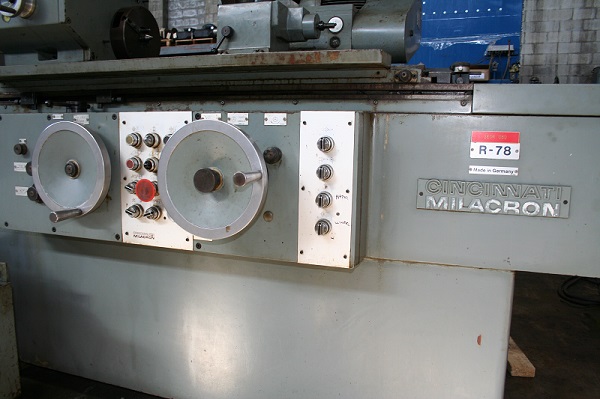

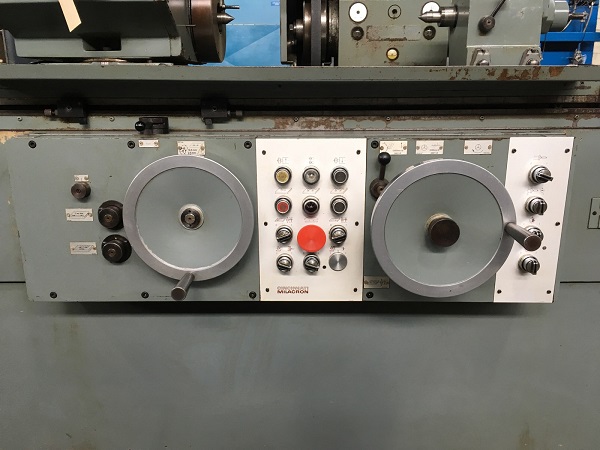

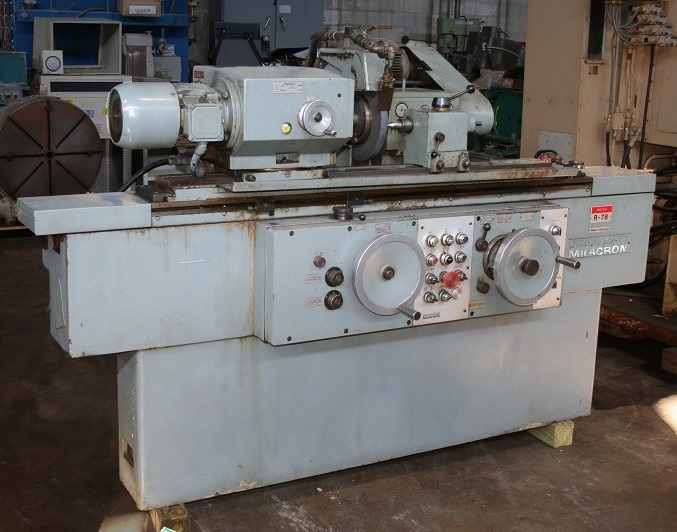

ACTUAL PHOTOS

                      10" x 31" Cincinnati # R-78 Plain Production Cylindrical Grinder
                                        Model R-78, New 1975, S/N 27995
                                                         Stock# Q10251

EQUIPPED WITH:
Swivel Variable Speed Live & Dead Workhead, Infinitely Variable Hydraulic Table Traverse, Auto Pickfeed, Hydraulic Advance/Retract Wheelhead, Traverse Grinding, Taper Grinding, Table Mounted Wheel Dresser, Straight Plunge Grinding, Coolant Tank & Pump, Operator Manual.

CATALOG SPECIFICATIONS:
Swing Over Table, Maximum...................................................... 10"
Grinding Diameter, Maximum (with New Wheel)........................ 10"
Grinding Length, Maximum (Work Length)................................. 31"
Grinding Wheel, Maximum Diameter (with New Wheel)............. 16"
Grinding Wheel, Maximum Width................................................ 2"
Grinding Wheel, Hole Diameter................................................... 5"
Table Rapid Traverse Rate.......................................................... 240 IPM
Table Feed Rates (Infinitely Variable).......................................... 941 IPM
Wheelhead Infeed Rapid Traverse Stroke................................... 2"
Wheelhead Infeed Feed Rates.................................................... .0002"-.0016"
Table Swivel Angle Toward Wheelhead....................................... 10 Degrees
Table Swivel Angle Away From Wheelhead................................ 10 Degrees
Wheelhead Horsepower............................................................... 5.5 HP
Workhead Horsepower................................................................. 1 HP
Workhead Speed.......................................................................... 60-470 RPM
Electrical System.......................................................................... 460/3/60
Approximate Machine Dimensions............................................... 92" x 76"
Approximate Machine Height........................................................ 57"
Approximate Machine Weight....................................................... 6,200 LBS

CONDITION: Appears to be in Excellent Condition!
