Leadwell LTC-35CXXL 2-Axis CNC Turning Center

Stock # Q10253

ACTUAL PHOTOS

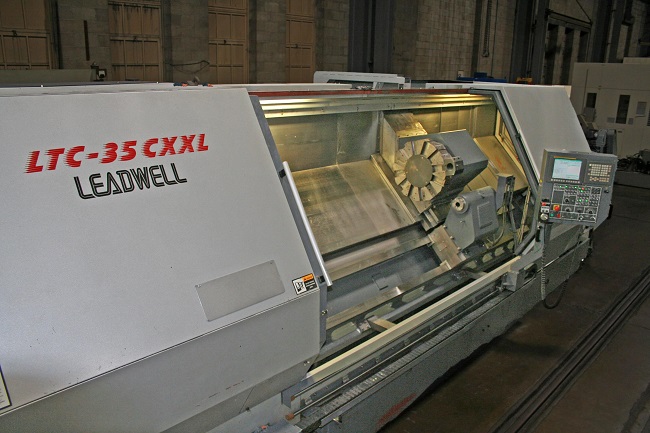

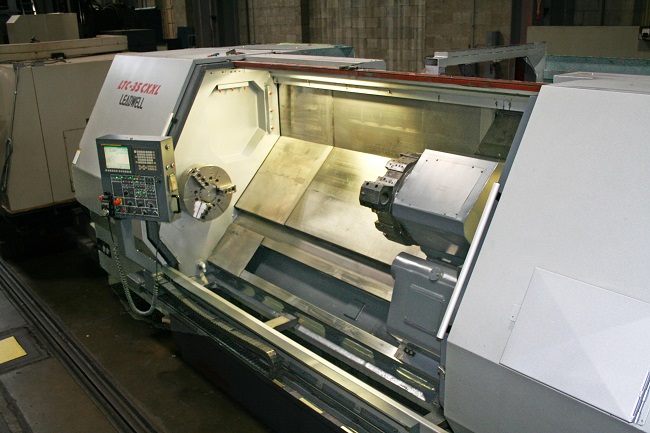

                                  LEADWELL LTC-35CXXL CNC TURNING CENTER
                                    Model LTC-35CXXL, New 2012, S/N L2TAA0162
                                                             Stock# Q10253


EQUIPPED WITH:

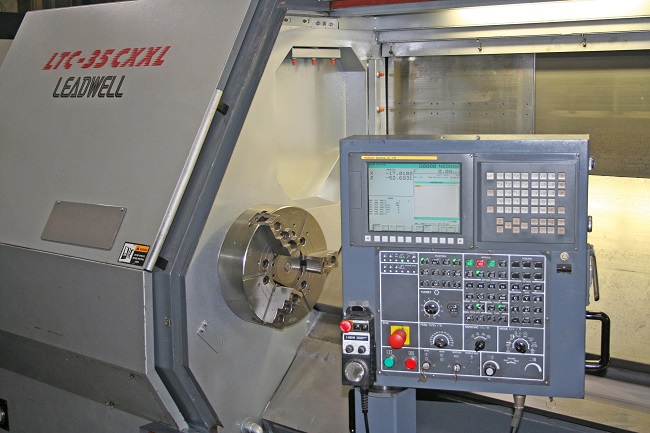

Fanuc 0i-TD CNC Control, 10.4" Color LCD w/ Manual Guide i Feature,
Programmable Tailstock and Programmable Quill, 18" 3-Jaw Power Chuck,

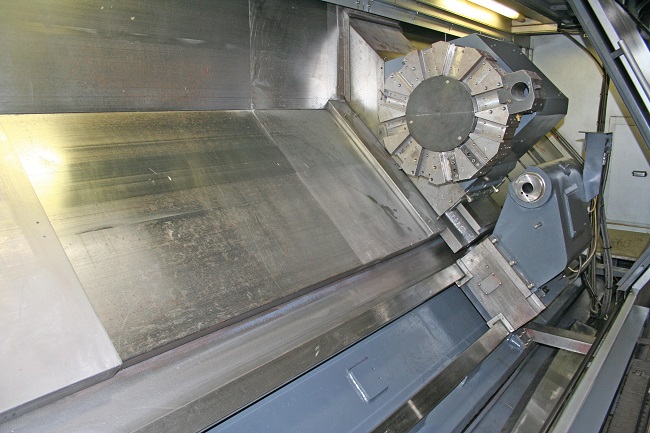

4.5" bar capacity, 12 Position Golden Sun CLT-200 ID/OD Tool Turret,
RIP-212 Turn-Thru Steady Rest, Heavy Duty Slant Bed Construction,

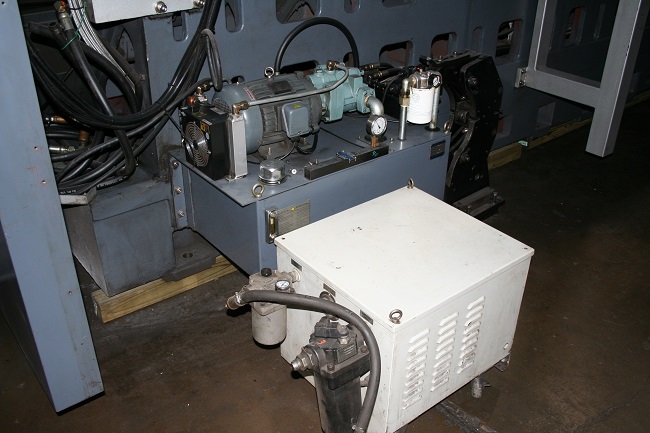

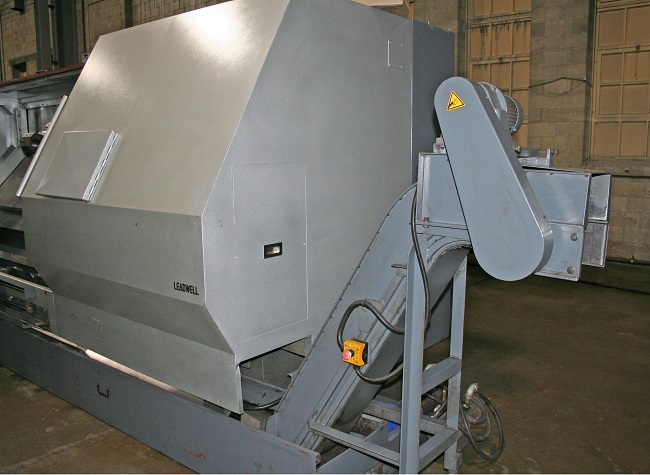

High/Low Spindle Range, Chip Conveyor and 300 psi High Pressure
Coolant System.

CATALOG SPECIFICATIONS:

Max Swing Over Slant Bed................................. 28.3"
Max Swing Over Cross Slide.............................. 21.25"
Max Distance Between Centers......................... 120"
Maximum Cutting Diameter................................ 23.62"
Maximum Turning Length................................... 119.3"
Chuck Size.......................................................... 18"
Cross Travel (X-Axis).......................................... 12.5"
Longitudinal Travel (Z-Axis)................................ 122"
Rapid Traverse Rate (X-Axis) ............................ 590 IPM
Rapid Traverse Rate (Z-Axis) ............................ 787 IPM
Turret Positions................................................... 12
Spindle Nose....................................................... A2-11
Bar Capacity........................................................ 4.5"
Spindle Speed..................................................... 2000 RPM
Spindle Drive Motor............................................. 50 HP
Electrics............................................................... 230/3/60
Approximate Machine Dimensions...................... 252" x 91"
Approximate Machine Height............................... 95"
Approximate Machine Weight.............................. 37,500 LBS


CONDITION: Appears to be in Excellent Condition!
