Miyano TSV-35L CNC Drill / Tap Vertical Machining Center

Stock # Q10359

Used Miyano TSV-35L CNC Drill and Tap Center For Sale, Used Miyano CNC Vertical Machining Center For Sale

ACTUAL PHOTOS

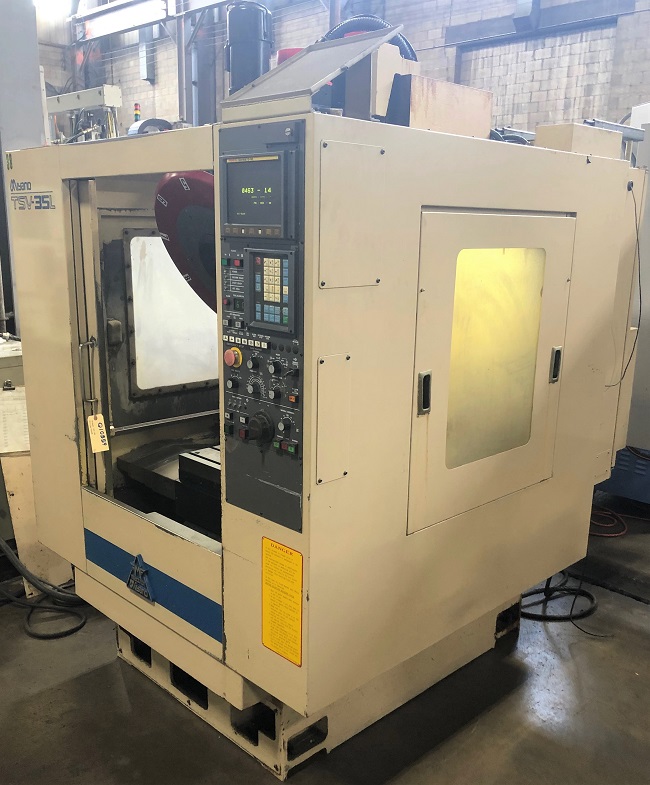

                               MIYANO TSV-35L CNC DRILL / TAP VERTICAL MACHINING CENTER
                                                    Model TSV-35L, S/N TSV35L122, New 1995
                                                                             Stock# Q10359

EQUIPPED WITH:

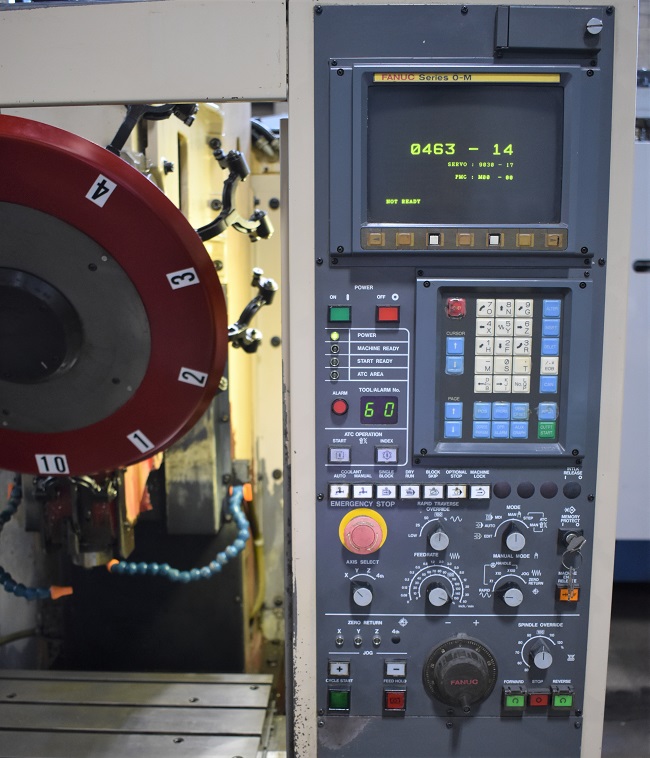

Fanuc 0-M CNC control, RS-232 Port, Inch / Metric Conversion, Heavy Duty
Geared Head, 6000 RPM Spindle, 10 Station Tool Changer, BT-40 Spindle
Taper, Coolant System.

CATALOG SPECIFICATIONS:
Table Size............................................. 24" x 15.7"
Table Load............................................. 440 LBS
X-Axis Travel.......................................... 19.6"
Y-Axis Travel.......................................... 14.9"
Z-Axis Travel.......................................... 9.8"
Rapid Traverse X & Y................................... 945"/min
Rapid Traverse Z....................................... 787"/min
Distance From Table To Spindle Nose.................... 9.8"-19.6"
Max Spindle RPM........................................ 6,000 RPM
Spindle Motor.......................................... 7.5 HP
Spindle Taper.......................................... BT-40
Tool Changer Stations.................................. 10
Tool Change Speed...................................... 1.8 Sec
Electrics.............................................. 230V/60/3
Approximate Machine Dimensions......................... 100" x 80"
Approximate Machine Height............................. 98"
Approximate Machine Weight ............................ 5,300 LBS
