Mazak Integrex 100-IISY CNC Milling/Turning Center

ACTUAL PHOTOS

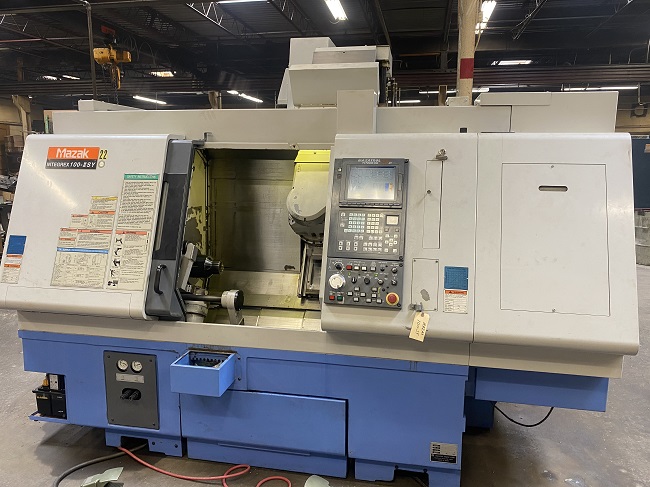

                                       MAZAK INTEGREX 100-IISY CNC MILLING/TURNING CENTER

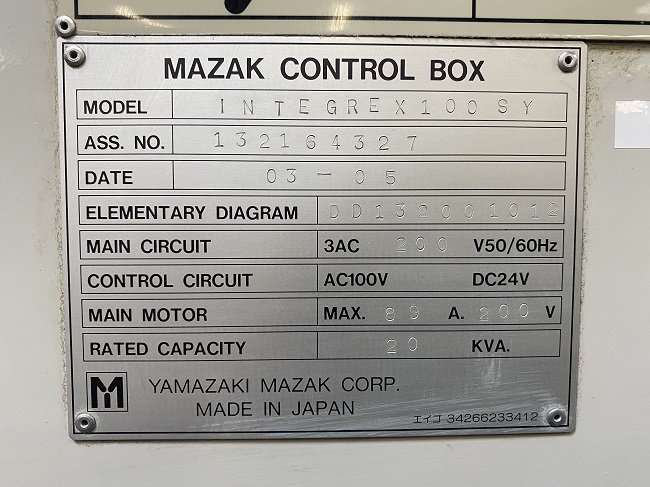

                                                          Model 100-IISY, S/N 164327, New 2005
                                                                              Stock# Q10452


EQUIPPED WITH:

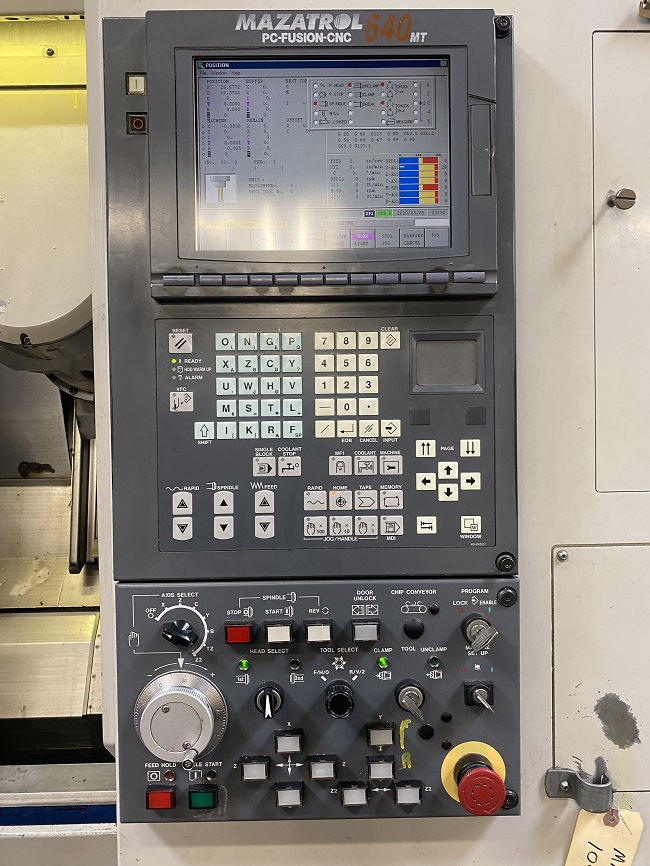

Mazatrol 640 MT CNC Control, EIA/ISO Input Function, Helical Interpolation,

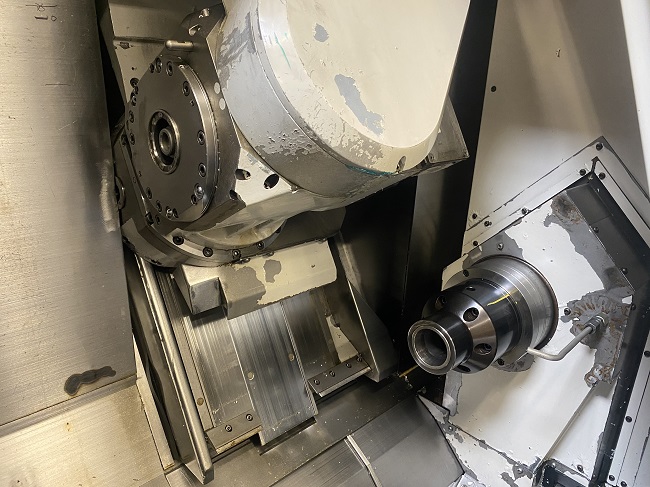

RS-232C Port, PCMCIA Interface, ATS Collet Chuck on Main & Sub Spindle,
5000 Max RPM on Main Spindle, 6000 Max RPM on Sub Spindle, 10,000 Max RPM

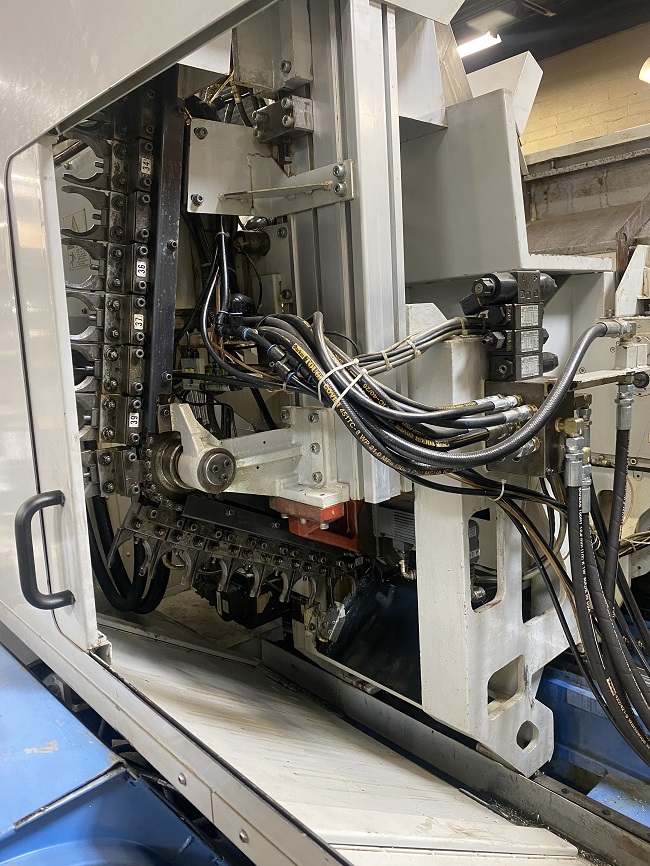

for Rotary Spindle, Y-Axis, C-Axis on Both Spindles, 40 Station Tool Changer,

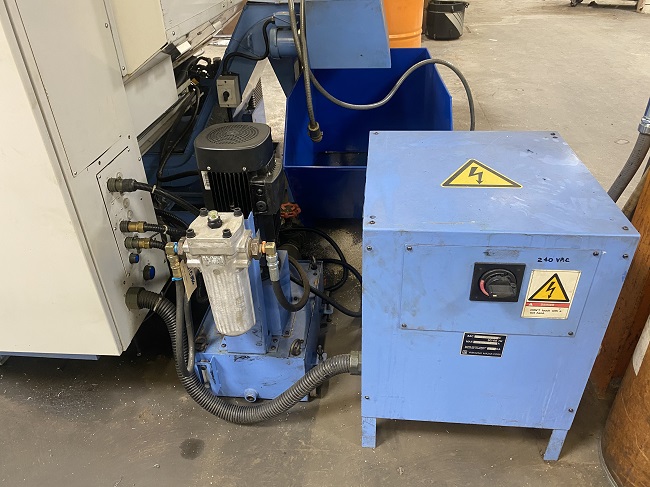

Tool Presetter, Parts Catcher, Bar Feeder Interface, Multi-Tap Transformer,
Chip Conveyor, Coolant Tank.


CATALOG SPECIFICATIONS:
Max Swing Over Bed............................... 18.5"
Max Swing Over Carriage........................ 11.42"
Max Turning Diameter.............................. 18.5"
Max Machining Length............................. 29.72"
Bar Capacity............................................. 1.69"
X-Axis Travel............................................ 14.17"
Y-Axis Travel............................................. 2.36"
Z-Axis Travel............................................. 30.87"
B-Axis Head Tilt......................................... +/- 225 Degrees
C-Axis Index.............................................. 0.001 Degrees
Rapid Traverse (X).................................... 1,181 IPM
Rapid Traverse (Y).................................... 1,024 IPM
Rapid Traverse (Z).................................... 1,299 IPM
Rapid Traverse (C).................................... 400 RPM
Rapid Traverse (B).................................... 74 RPM
Main Spindle Nose.................................... A2-5
Main Spindle Speed.................................. 5,000 RPM
Sub-Spindle Speed................................... 6,000 RPM
Rotary Tool Spindle Speed....................... 10,000 RPM
Rotary Tool Taper...................................... KM-63
Main Spindle Motor................................... 15 HP
Live Tooling Motor..................................... 7.5 HP
Tool Magazine Capacity............................ 40
Electrics.................................................... 440/3/60
Machine Dimension.................................. 121" x 84" x 97"
Machine Weight........................................ 16,500 LBS Approx


CONDITION: Machine Appears to be in Excellent Condition.
